1426S
178.7 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
1426S
305 × 152 × 102 mm
Material: Steel
Category: All Products, Desktop & Instrument

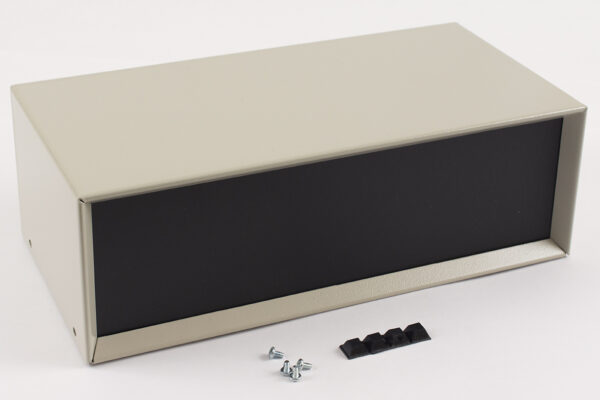

Metal Instrument Case
£50.47
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Top and bottom made in 20 gauge steel (for strength) and finished in beige or satin gulf blue powder coat.
- Easy to machine 0.064” thick aluminium panels front and rear.
- Rear panel and bottom of enclosure is vented.
- Front panel is satin black, rear panel matches case colour.
- 6-32 Philips nickel plated screws and self-adhesive rubber feet included.
- Replacement screws
1421J6 (Pkg. of 6, 6-32 Philips head screws).
Technical
| Dimensions | 305 × 152 × 102 mm |
|---|---|
| Colour | White |
| Height | 102 |
| Width | 152 |
| Length | 305 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Steel |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Vented |
| Series | 1426 |
