1431-16BK3
244 × 102 × 1 mm
Material: Steel
Category: All Products, Desktop & Instrument

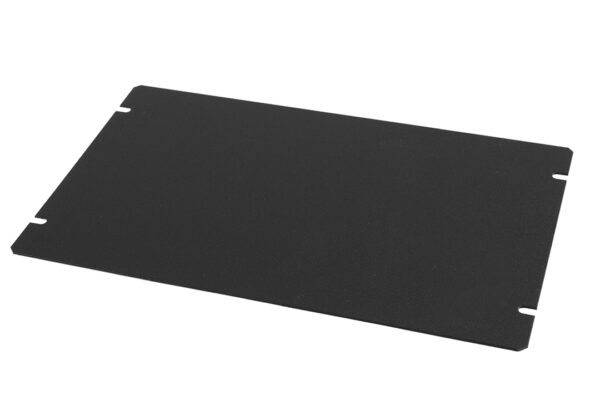

Steel Chassis - Bottom Plate
£6.91
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features
- Small, economical, open, two hole horizontal bracket mount.
- Insulated, colour coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
- For a similar, P.C. board mount version, refer to the
148 and149 series. - Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
- When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower, conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
- Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).
Technical
| Dimensions | 244 × 102 × 1 mm |
|---|---|
| Colour | Black |
| Height | 1 |
| Width | 102 |
| Length | 244 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Steel |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 1441 |
