1431-34

422 × 254 × 1 mm

Material: Steel

Category: All Products, Desktop & Instrument

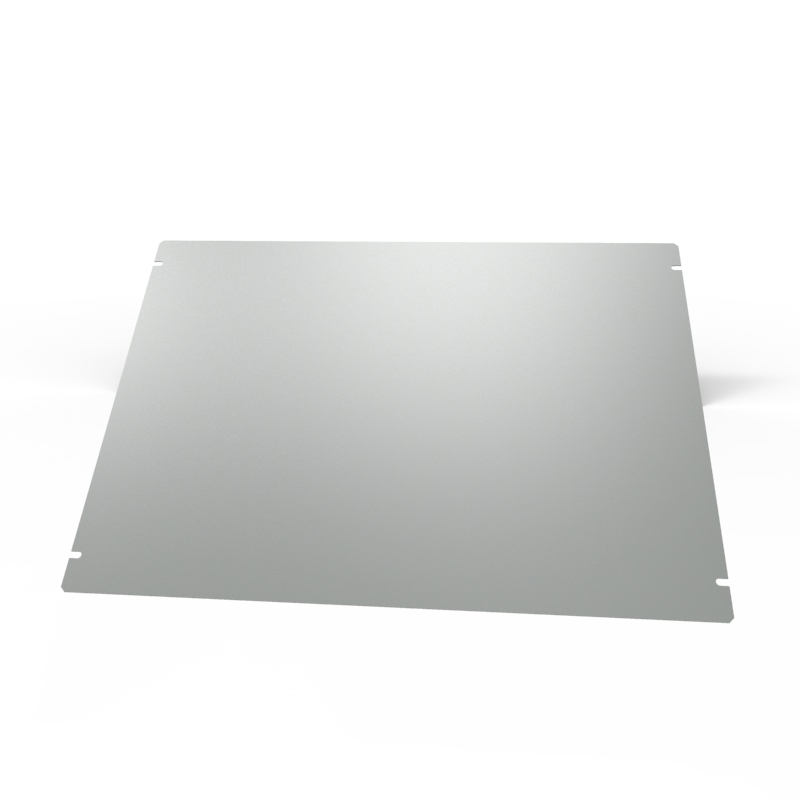

Steel Chassis - Bottom Plate
£12.11

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Features

  • Small, economical, open, two hole horizontal bracket mount.
  • Insulated, colour coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
  • For a similar, P.C. board mount version, refer to the 148 and 149 series.
  • Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
  • When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower, conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
  • Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).

Technical

Dimensions 422 × 254 × 1 mm
Colour

Grey

Height

1

Width

254

Length

422

IP Rating

N/A

Manufacturer

Hammond

Material

Steel

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

1441

Downloads

1441-6

397.1 KB
