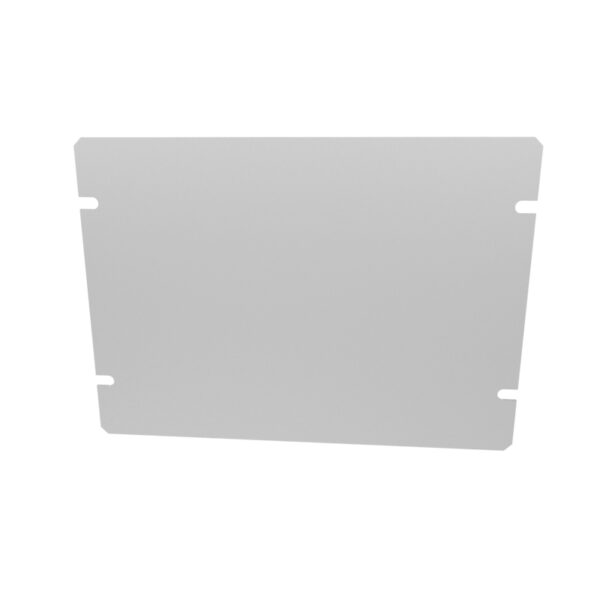

1434-12
168 × 76 × 1 mm
Material: Aluminium
Category: All Products, Desktop & Instrument
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Spot welded – heavy duty construction chassis.
- Natural aluminium finish (as shown above) – also available in painted steel with walnut side panels).
- Side panels are made from solid walnut and routed out to fit over ends of chassis (pre-punched for easy mounting).
- Walnut side panels attach with four machine screws & lock washers (included) into metal inserts to avoid wood damage. Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
- Usable surface of chassis front, back and top are reduced by roughly 7/8? (22 mm) due to inset in walnut sides.
- Optional bottom plates are punched with 4 holes ? 3/16? diameter.
- Bottom plate hardware not provided, please order separately – Part number 1421J6 (Pkg. of 6, 6-32 Philips head screws).
- NOTE: our steel chassis covers (1451 series) are NOT compatible with this series.
Features:
Technical
| Dimensions | 168 × 76 × 1 mm |
|---|---|
| Colour | Natural |
| Height | 1 |
| Width | 76 |
| Length | 168 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 1444 |
