1434-1717

432 × 432 × 1 mm

Material: Aluminium

Category: All Products, Desktop & Instrument

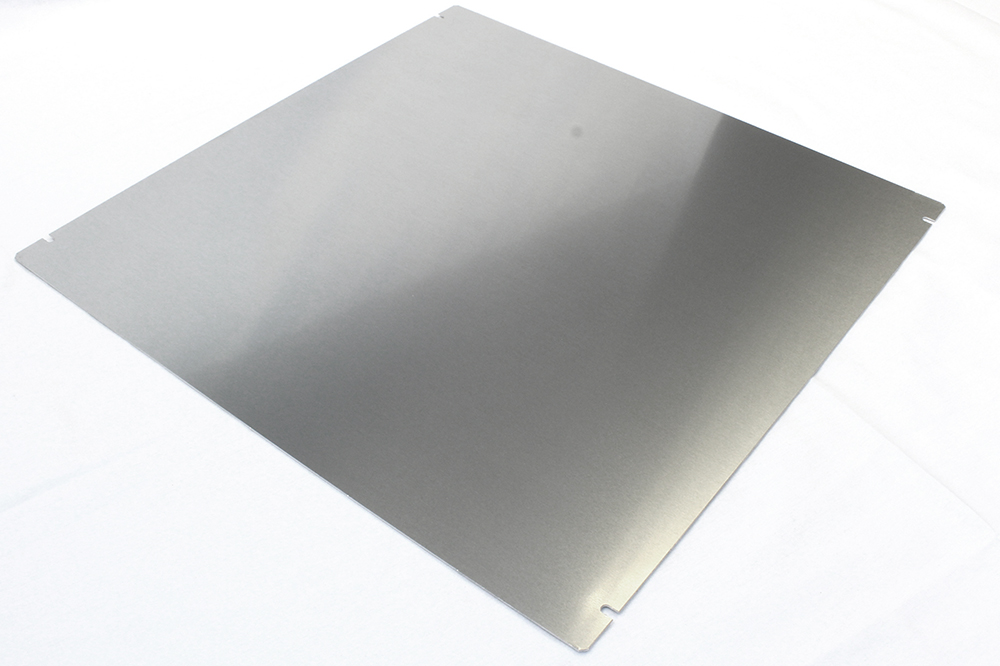

Aluminium Chassis - Bottom Panel
£18.07

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Spot welded – heavy duty construction chassis.
  • Natural aluminium finish (as shown above) – also available in painted steel with walnut side panels).
  • Side panels are made from solid walnut and routed out to fit over ends of chassis (pre-punched for easy mounting).
  • Walnut side panels attach with four machine screws & lock washers (included) into metal inserts to avoid wood damage. Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
  • Usable surface of chassis front, back and top are reduced by roughly 7/8? (22 mm) due to inset in walnut sides.
  • Optional bottom plates are punched with 4 holes ? 3/16? diameter.
  • Bottom plate hardware not provided, please order separately – Part number 1421J6 (Pkg. of 6, 6-32 Philips head screws).
  • NOTE: our steel chassis covers (1451 series) are NOT compatible with this series.

Features:

Standard version shown inside and out.
Six sizes available with walnut sides.
Optional bottom panels available for all sizes.
Protective covering on aluminium is perfect as a layout tool.

Technical

Dimensions 432 × 432 × 1 mm
Colour

Natural

Height

1

Width

432

Length

432

IP Rating

N/A

Manufacturer

Hammond

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

1444
