1453K

457 × 229 × 254 mm

Material: Steel

Category: All Products, Desktop & Instrument

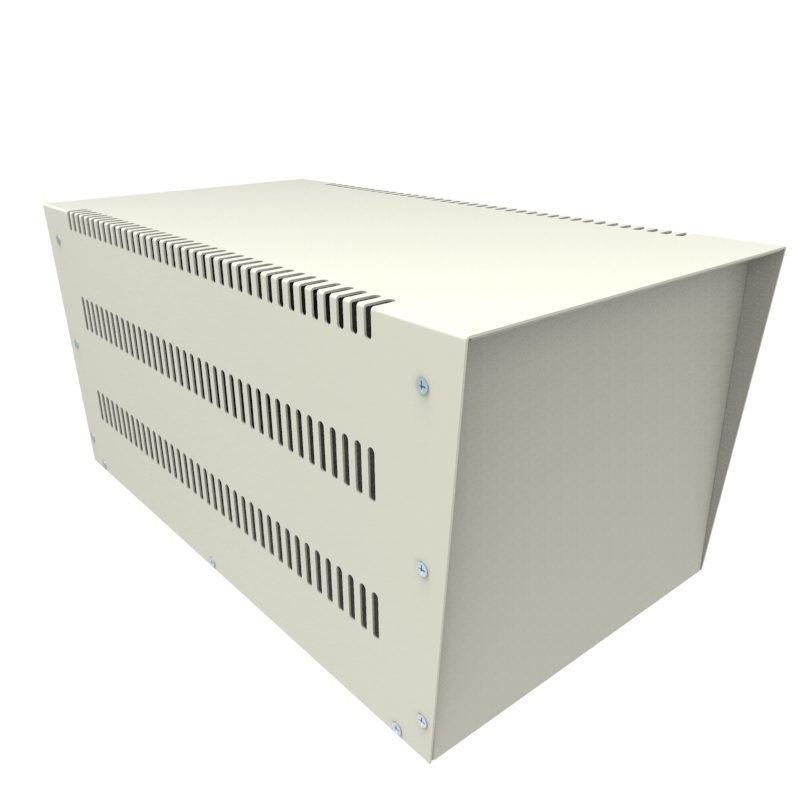

Metal Instrument Case
£109.94

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • All steel, heavy duty construction designed to house heavy, heat producing items such as power supplies.
  • Bottom of unit is 16 gauge steel, top is 18 gauge steel.
  • Finished in a rugged beige powder coat.
  • Top half is of an upside down “U” shape design for easy removal, bottom half is also “U” shaped but includes a fold on all sides including front & back for extra strength and mounting of top case.
  • Top case section is heavily ventilated for excellent air circulation with an attractive slant (also doubles as a lifting area – both front & back).
  • Top lip extends 0.75” (19 mm) on both sides adding 1.5” (38 mm) to the total depth.
  • Bottom is solid except for 4 holes for mounting heavy duty rubber feet.
  • Includes nickel plated self-tapping screws and screw on 0.75” (19 mm) high, rubber feet (1421T7).

Technical

Dimensions 457 × 229 × 254 mm
Colour

Grey

Height

254

Width

229

Length

457

IP Rating

N/A

Manufacturer

Hammond

Material

Steel

Flammability

N/A

Shape

U Shaped

Mounting

Free Standing

Feature

Vented

Series

1453

Downloads

1453K

527.28 KB
