1454L
196.76 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
1454L
152 × 127 × 102 mm
Material: Steel
Category: All Products, Desktop & Instrument

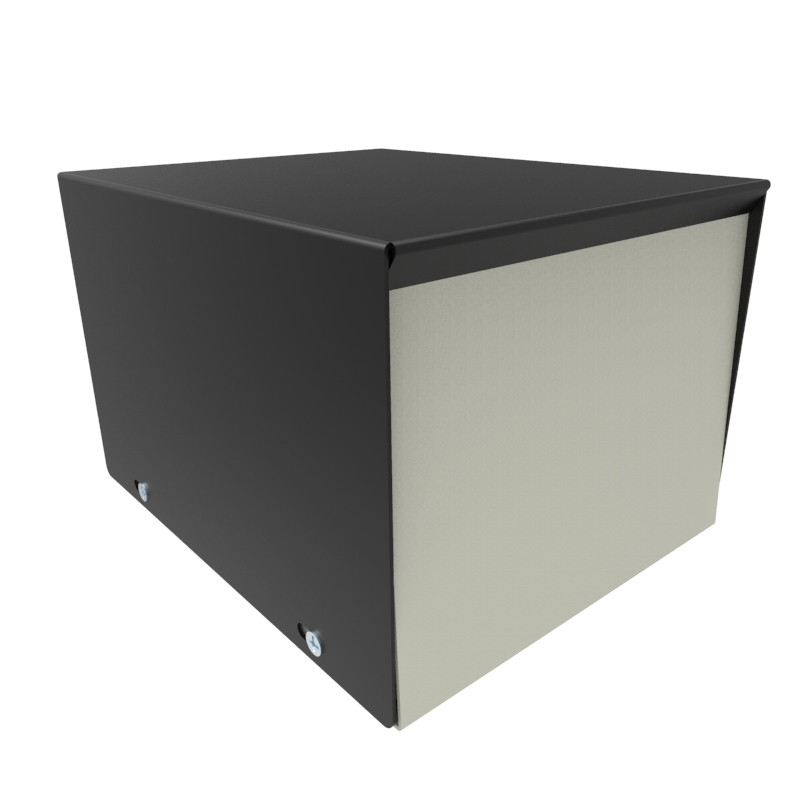

Metal Instrument Case
£23.61
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Made of strong, economical 20 gauge steel.
- Rugged powder coat finish: beige panels with textured black covers.
- Choice of sloping or vertical front panels by reversing case.
- 6-32 Philips nickel plated screws and self-adhesive rubber feet included.
- Replacement screws, part number
1421J6 (Pkg. of 6, 6-32 Philips head screws).
Technical
| Dimensions | 152 × 127 × 102 mm |
|---|---|
| Colour | Black, Grey |
| Height | 102 |
| Width | 127 |
| Length | 152 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Steel |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 1454 |
