1454S

203 × 254 × 76 mm

Material: Steel

Category: All Products, Desktop & Instrument

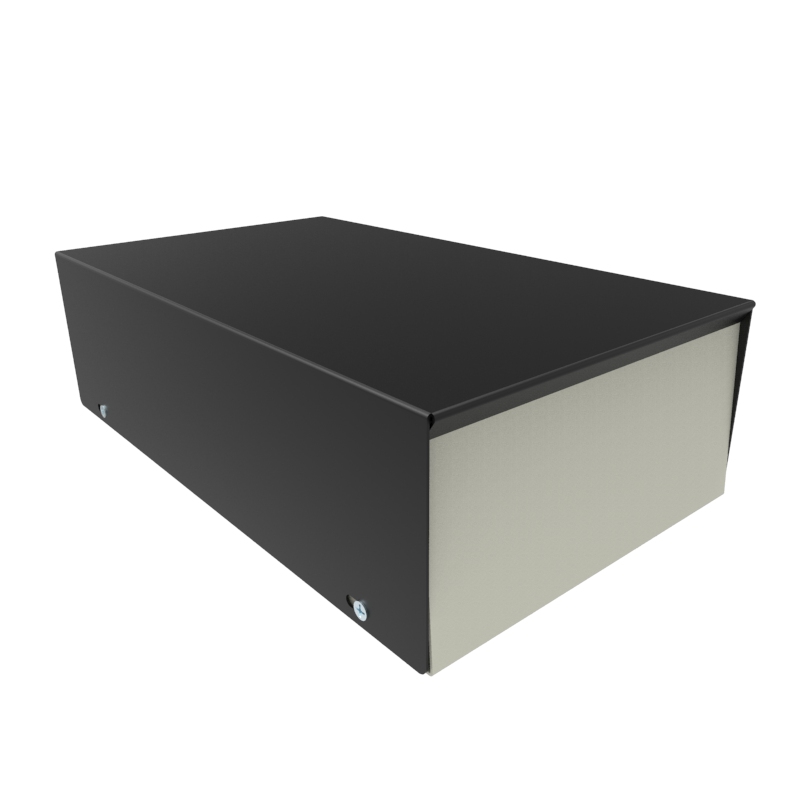

Metal Instrument Case
£27.52

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Made of strong, economical 20 gauge steel.
  • Rugged powder coat finish:  beige panels with textured black covers.
  • Choice of sloping or vertical front panels by reversing case.
  • 6-32 Philips nickel plated screws and self-adhesive rubber feet included.
  • Replacement screws, part number 1421J6 (Pkg. of 6, 6-32 Philips head screws).

Technical

Dimensions 203 × 254 × 76 mm
Colour

Black, Grey

Height

76

Width

254

Length

203

IP Rating

N/A

Manufacturer

Hammond

Material

Steel

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

1454

Downloads

1454S

169.4 KB
