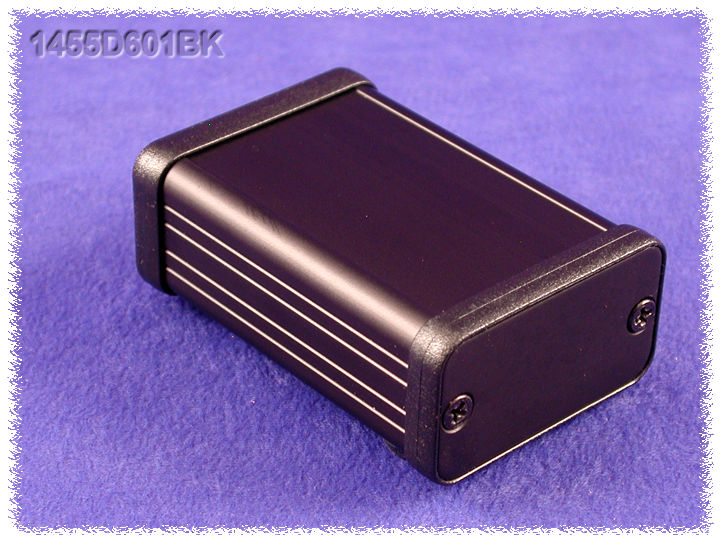

1455D601BK
60 × 45 × 25 mm
Material: Aluminium
Category: All Products, Diecast & Metal
Extruded Enclosure
£11.69
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocard’s.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from extruded aluminium with a minimum thickness of .06? (1.5 mm).
- Extruded body includes a slide removable ?belly? plate – except in smaller sizes ?A? through ?D?
Includes:
- Versions with metal end plates includes two aluminium end panels – finish matched to extruded aluminium body and two black plastic bezels (your option to install).
- Versions with plastic end plates includes two all-plastic end caps.
- Extruded aluminium body – choice of clear, black, blue or red anodized finish
- Self adhesive rubber feet. Replacements are available – order part number 1421T2CL (pack of 24).
- All hardware – end panel screws are #6 x 3/8? TTT – thread rolling, steel screws with a #4 flat head Phillips drive. Zinc plate finish – either clear or black (black screws are used on the black, blue & red models).
- For black replacement screws (quantity 100) order part number 1455MS100BK
- For clear replacement screws (quantity 100) order part number 1455MS100
- NOTE: Recommended screw torque is 5 lbf-in
Technical
| Dimensions | 60 × 45 × 25 mm |
|---|---|
| Colour | Black |
| Height | 25 |
| Width | 45 |
| Length | 60 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 1455 |
