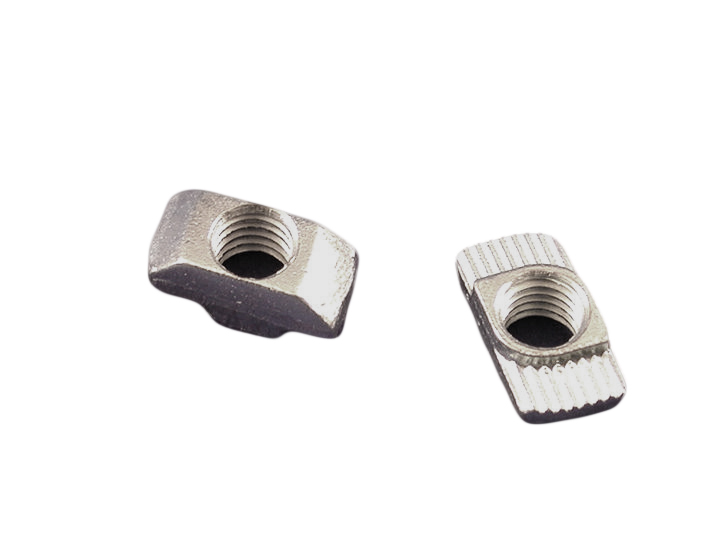

1455TNUT

14 × 10 × 8 mm

Material: Steel

Category: All Products, Diecast & Metal

Extruded Enclosure - Channel Mount, Nuts
£4.39

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Designed to house P.C. boards or for equipment interfacing.
  • Sized for standard Eurocard.
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminium with a minimum thickness of .06? (1.5 mm).
  • Extruded body includes a slide removable ?belly? plate – except in smaller sizes ?A? through ?D?

Includes:

  • Versions with metal end plates includes two aluminium end panels – finish matched to extruded aluminium body – and two black plastic bezels (your option to install).
  • Versions with plastic end plates includes two all-plastic end caps.
  • Extruded aluminium body – choice of clear, black, blue or red anodized finish
  • Self adhesive rubber feet. Replacements are available – order part number 1421T2CL (pack of 24).
  • All hardware – end panel screws are #6 x 3/8? TTT – thread rolling, steel screws with a #4 flat head Phillips drive. Zinc plate finish – either clear or black (black screws are used on the black, blue & red models).
  • For black replacement screws (quantity 100) order part number 1455MS100BK
  • For clear replacement screws (quantity 100) order part number 1455MS100
  • NOTE: Recommended screw torque is 5 lbf-in
  • Most models feature a slide out belly plate. All models include rubber feet.
  • Accessory panels and bezels allow for mixing and matching of colours.
  • All models sold as a complete enclosure and feature card slots for easy installation and assembly of PC boards.

Plastic Bezels and End Caps

Extra plastic bezels and end caps are sold in packs of (2) and (10) and are available in black, red, yellow, transparent red, and transparent blue.

Aluminium End Panels

Extra end panels are sold in 10-packs and are available in clear, black, red, or blue anodized finishes. ?Refer to the accessory table below to select the part number you need.

Flanged End Panel Kit

Flanged end panel kits are sold as a pair (2 panels total) and include black pan head assembly screws. ?Refer to the accessory table below to select the part number you need.

Technical

Dimensions 14 × 10 × 8 mm
Colour

N/A

Height

8

Width

10

Length

14

IP Rating

N/A

Manufacturer

Hammond

Material

Steel

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

1455
