1456WL3WHBU
221.1 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
1456WL3WHBU
293 × 508 × 81 mm
Material: Aluminium
Category: All Products, Desktop & Instrument
Sloping Consoles
£52.97
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- aluminium cases 0.081” (2 mm) thick aluminium.
- aluminium top panel sizes to 14” wide are 0.064” thick aluminium. Larger sizes are 0.081” thick.
- Sold pre-assembled with a textured blue case and a choice of a contempra grey (beige) or a black top panel.
- Comes with self adhesive rubber feet and required mounting hardware.
- Some models available with walnut sides – see series
1456CWW - Replacement screws
1421J6 (Pkg. of 6, 6-32 Philips head sheet metal screws).

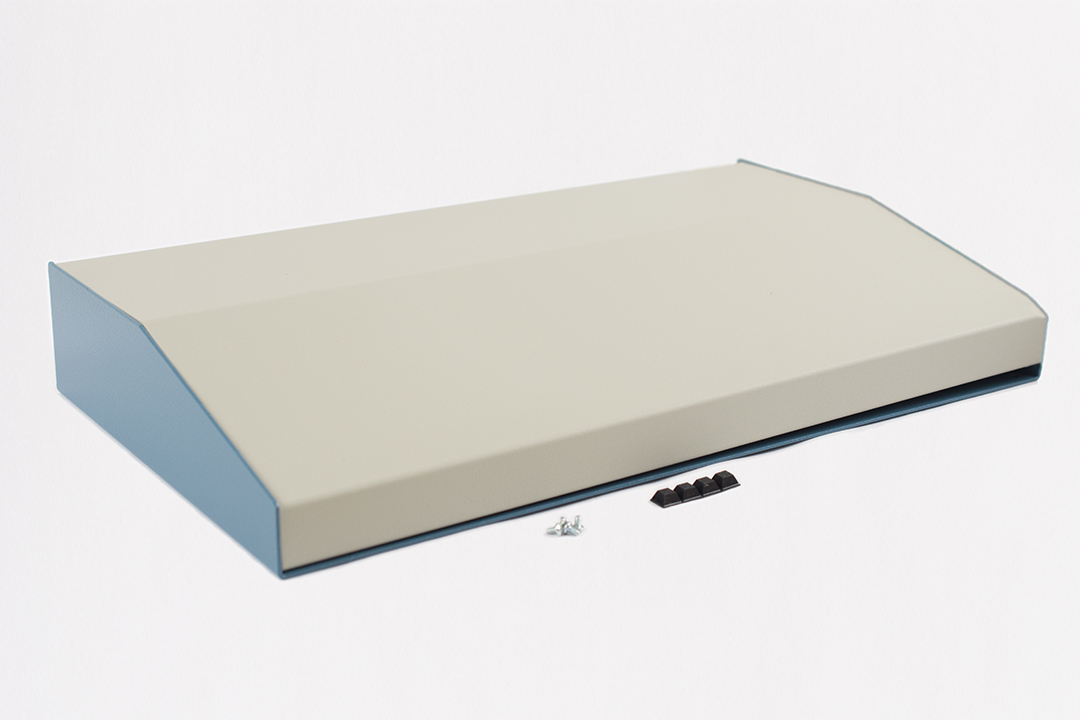

Photo Features:
nVents on rear and bottom
n
nAll models have a blue base. Available with a beige or black top.
n
nShown unassembled
Technical
| Dimensions | 293 × 508 × 81 mm |
|---|---|
| Colour | Beige, Blue |
| Height | 81 |
| Width | 508 |
| Length | 293 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square, Sloped Design |
| Mounting | Free Standing |
| Feature | Vented |
| Series | 1456 |
