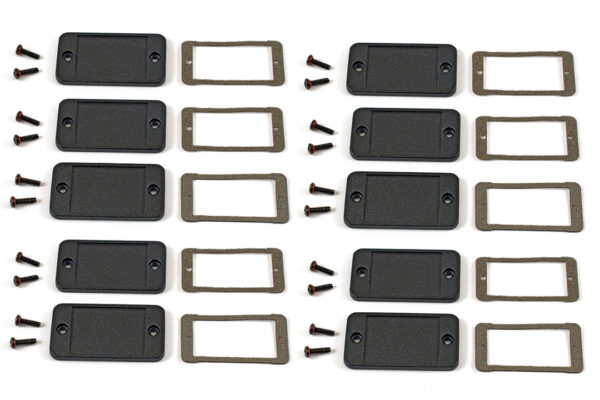

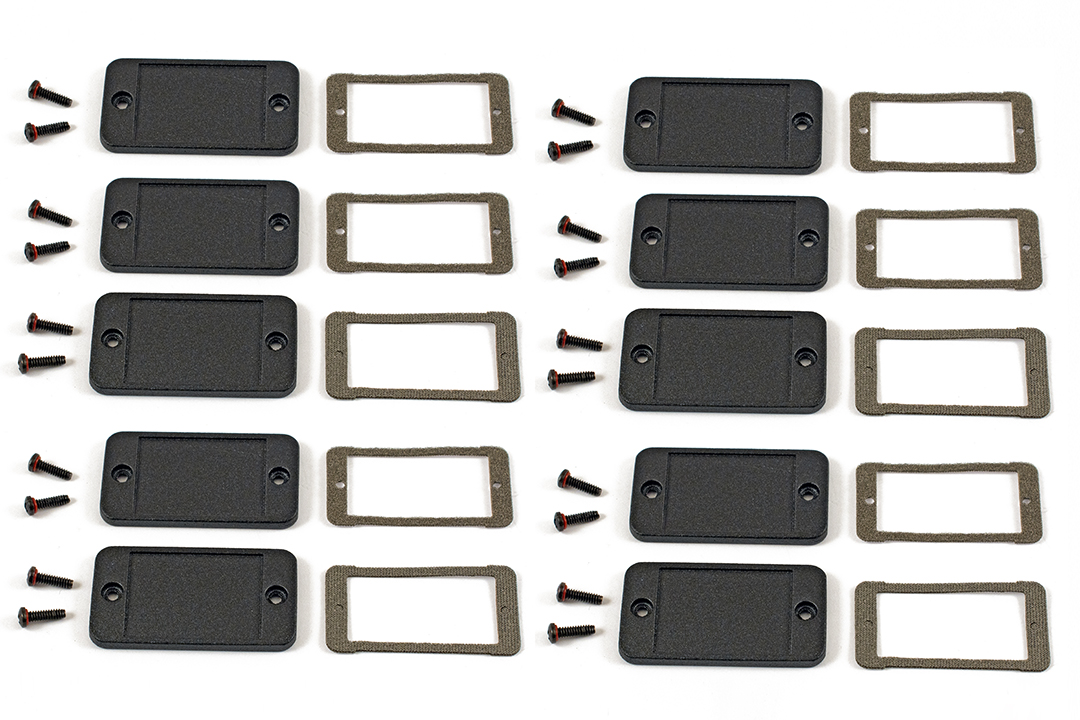

1457CEP-10
5 × 59 × 31 mm
Material: Aluminium
Category: All Products, Diecast & Metal
Low volume indicative cost. Enquire for volume pricing.
Add to QuoteAsk a QuestionReport an ErrorEnclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Waterproof – heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocard.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from one piece, extruded aluminium with a minimum thickness of .06? (1.5 mm).
- Extruded aluminium body includes a recessed area for labels or membrane keypad.
- End panels are rugged – yet easy to machine – diecast aluminium with full perimeter self-adhesive gaskets.
- Designed to meet IP65.
- Choice of two versions – end panels without flange or with flange (for shelf or Wall Mounting).
Includes:
- Two diecast aluminium end panels – painted in a durable, black satin powder paint.
- Extruded, aluminium body (choice of either clear anodized or black powder paint finish).
- Two closed cell polyethylene foam – end plate gaskets & rubber ?O? rings for assembly screws.
- All hardware and self-adhesive feet.
- Replacement assembly screws can be purchased in 100-packs under part number?1457MS100
- NOTE: Recommended screw torque is 5 lbf/in
Enclosure includes extruded body, die-cast end panels, gaskets, and hardware. ?Extra end panel kits are sold separately.
Built to be water-proof and very rugged.
Technical
Dimensions | 5 × 59 × 31 mm |
---|---|
Colour | Black |
Height | 31 |
Width | 59 |
Length | 5 |
IP Rating | N/A |
Manufacturer | Hammond |
Material | Aluminium |
Flammability | N/A |
Shape | Rectangular/Square |
Mounting | Free Standing |
Feature | RF Shielded |
Series | 1457-EMI |
