Product Details

Key Features:

• Waterproof – heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing.
• Sized for standard Eurocard.
• P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
• Rugged body constructed from one piece, extruded aluminium with a minimum thickness of .06? (1.5 mm).
• Extruded aluminium body includes a recessed area for labels or membrane keypad.
• End panels are rugged – yet easy to machine – diecast aluminium with full perimeter self-adhesive gaskets.
• Designed to meet IP65.
• Choice of two versions – end panels without flange or with flange (for shelf or Wall Mounting).

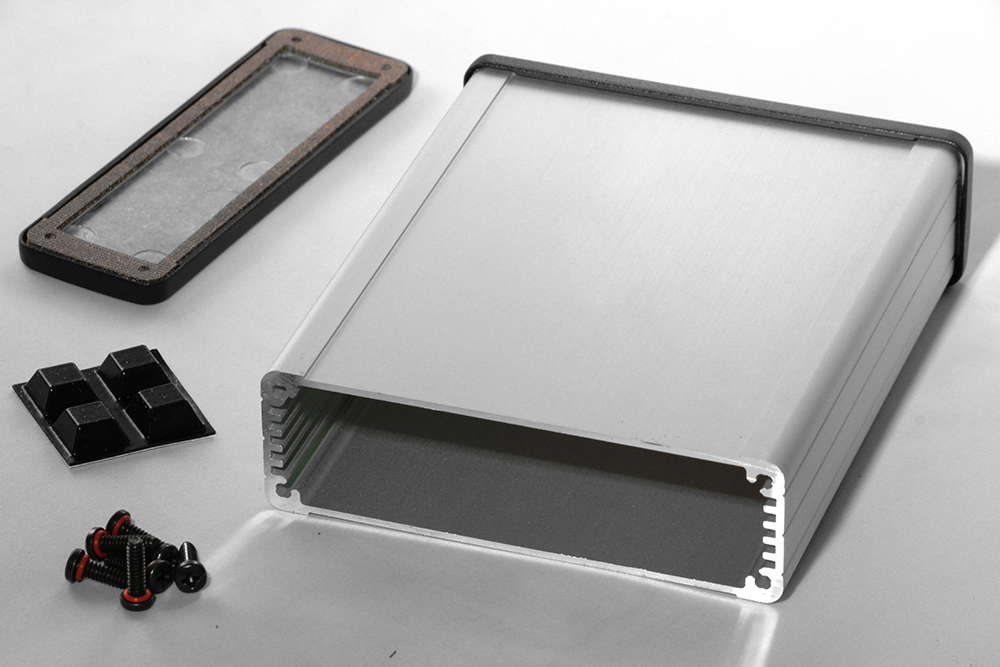

Includes:

• Two diecast aluminium end panels – painted in a durable, black satin powder paint.
• Extruded, aluminium body (choice of either clear anodized or black powder paint finish).
• Two closed cell polyethylene foam – end plate gaskets & rubber ?O? rings for assembly screws.
• All hardware and self-adhesive feet.
• Replacement assembly screws can be purchased in 100-packs under part number?1457MS100
• NOTE: Recommended screw torque is 5 lbf/in
• Available with black powder coat or clear anodize finish and with or without Wall Mounting flanges.
• Enclosure includes extruded body, die-cast end panels, gaskets, and hardware. ?Extra end panel kits are sold separately.
• Built to be water-proof and very rugged.
