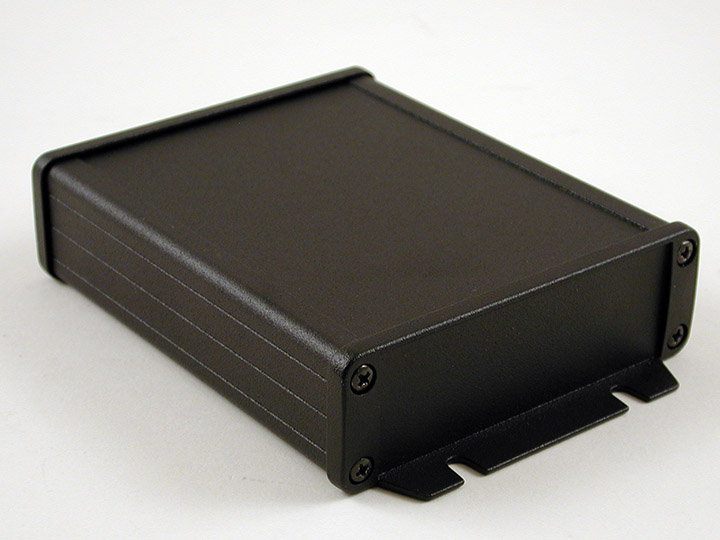

1457L1202BK

120 × 104 × 32 mm

Material: Aluminium

Category: All Products, Diecast & Metal

Extruded Enclosure - IP - Flanged
£26.49

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Waterproof – heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing.
  • Sized for standard Eurocards.
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from one piece, extruded aluminium with a minimum thickness of .06? (1.5 mm).
  • Extruded aluminium body includes a recessed area for labels or membrane keypad.
  • End panels are rugged – yet easy to machine – diecast aluminium with full perimeter self-adhesive gaskets.
  • Designed to meet IP65.
  • Choice of two versions – end panels without flange or with flange (for shelf or Wall Mounting).

Includes:

  • Two diecast aluminium end panels – painted in a durable, black satin powder paint.
  • Extruded, aluminium body (choice of either clear anodized or black powder paint finish).
  • Two closed cell polyethylene foam – end plate gaskets & rubber ?O? rings for assembly screws.
  • All hardware and self-adhesive feet.
  • Replacement assembly screws can be purchased in 100-packs under part number?1457MS100
  • NOTE: Recommended screw torque is 5 lbf/in
  • Available with black powder coat or clear anodize finish and with or without Wall Mounting flanges.
  • Enclosure includes extruded body, die-cast end panels, gaskets, and hardware. ?Extra end panel kits are sold separately.
  • Built to be water-proof and very rugged.

Technical

Dimensions 120 × 104 × 32 mm
Colour

Black

Height

32

Width

104

Length

120

IP Rating

IP65

Manufacturer

Hammond

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing

Feature

Recessed Area

Series

1457

Downloads

1457L1202BK

392.84 KB
