SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST

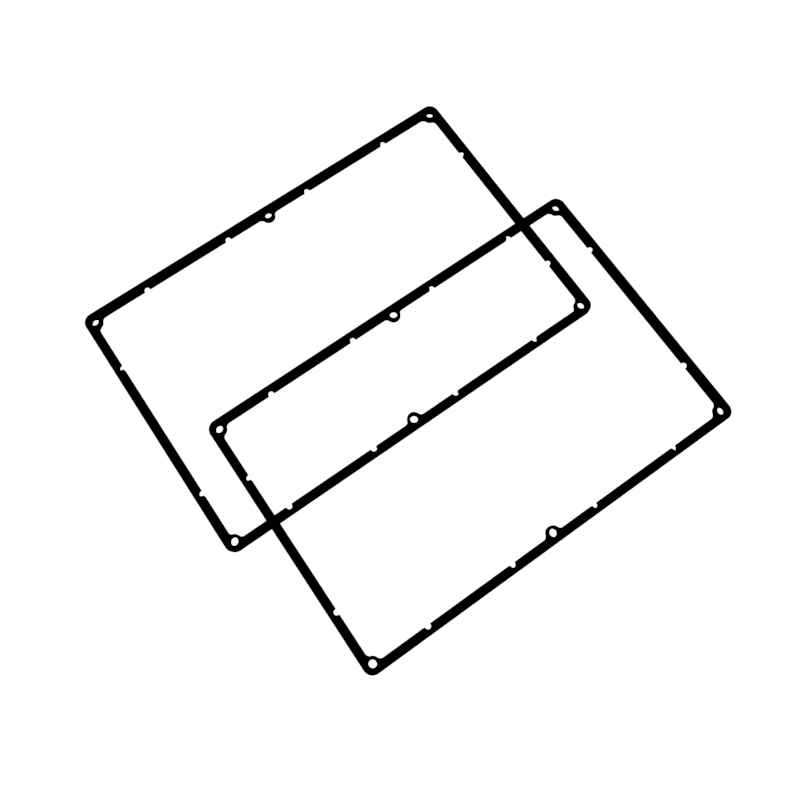

1550GSGASKET
222 × 146 × 3 mm
Material: Rubber
Category: All Products, Diecast & Metal
Low volume indicative cost. Enquire for volume pricing.
Add to QuoteAsk a QuestionReport an ErrorEnclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features:
- Rugged, diecast aluminium alloy (tough yet easy to machine), electronic instrument enclosure.
- Available in natural vibra finish OR in light textured, black powder paint.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining.
- Black screws are included to enhance the assembled appearance.
- Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.? The enclosure does not provide shielding when water-tight gaskets are installed.
- M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid into factory tapped holes.
- Designed to meet IP 54 without a gasket or IP66 with a gasket. ?IP67 upgraded gaskets are available.
- All sizes except 1550Z101 carry an impact rating of IK08 per IEC62262
- No internal ribs for easy installation of connectors without interference or additional milling.
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
- Add 0.16″ (4 mm) to enclosure depth for lid
Replacement Hardware:
- Replacement screws for the unpainted series ?-?1550MS100?- Package of 100
- Replacement screws for the black series -?1550MS100BK?- Package of 100
Upgrade To Tamper-Resistant (Torx With Pin) Hardware:
- Tamper-resistant screws for the unpainted series – 1550MS50T- Package of 50
- Tamper-resistant screws for the black series -1550MS50TBK – Package of 50
- Driver bit for tamper-proof screws -?SCDRIVET15-2
Accessory Gasket Kits:
IP66
- Each kit includes two pre-formed economical EVA foam gaskets.
- Gaskets include adhesive backing for easy installation.
- Allows enclosure to be machined and/or painted first and gasketed later
- Gasket is applied to the lid (see photo example below).
- Designed to meet IP 66 (with properly installed gasket and lid screws torqued at 55 cN.m).
- EVA Foam gasket rated up to 65 degrees C.
IP67 Upgrade
- Each kit includes two pre-formed silicone gaskets.
- Gaskets include adhesive backing for easy installation.
- Allows enclosure to be machined and/or painted first and gasketed later.
- Gasket is applied to the lid (see photo example below).
- Tested to meet IP 67 (with properly installed gasket and lid screws torqued at 55 cN.m).
- Silicone gasket has a temperature rating of -40C to +150C
Technical
Dimensions | 222 × 146 × 3 mm |
---|---|
Colour | N/A |
Height | 3 |
Width | 146 |
Length | 222 |
IP Rating | N/A |
Manufacturer | Hammond |
Material | Rubber |
Flammability | N/A |
Shape | Rectangular/Square |
Mounting | Board Mounting |
Feature | RF Shielded |
Series | 1550 |
