Product Details

Features

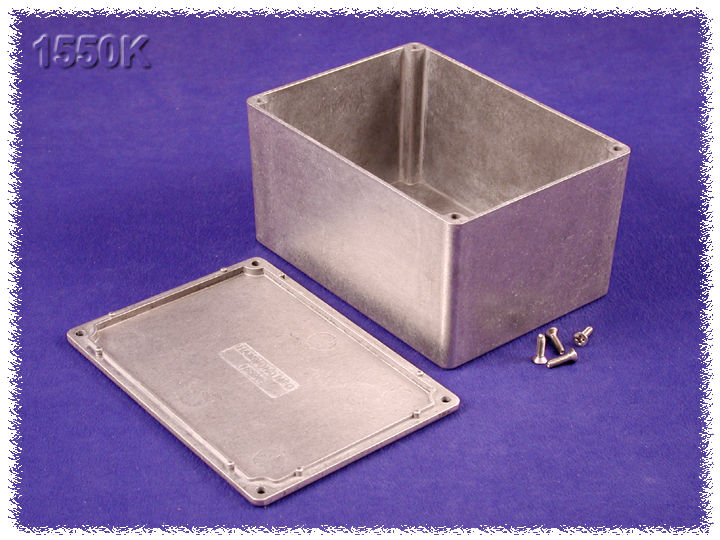

• Rugged, diecast aluminium alloy (tough yet easy to machine), electronic instrument enclosure.
• Available in natural vibra finish OR in light textured, black powder paint.
• Unpainted version is vibra finished for a smooth surface with no sharp edges.
• Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance.
• Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.? The enclosure does not provide shielding when water-tight gaskets are installed.
• M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid into factory tapped holes.
• Designed to meet IP 54 without a gasket or IP66 with a gasket. ?IP67 upgraded gaskets are available.
• All sizes except 1550Z101** carry an impact rating of IK08 per IEC62262
• No internal ribs for easy installation of connectors without interference or additional milling.
• Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
• Add 0.16″ (4 mm) to enclosure depth for lid

Replacement Hardware

• Replacement screws for the unpainted series ?-?1550MS100?- Package of 100
• Replacement screws for the black series -?1550MS100BK?- Package of 100

Upgrade To Tamper-Resistant (Torx With Pin) Hardware

• Tamper-resistant screws for the unpainted series – 1550MS50T- Package of 50
• Tamper-resistant screws for the black series -1550MS50TBK – Package of 50
• Driver bit for tamper-proof screws -?SCDRIVET15-2

Accessory Gasket Kits

• IP66
  • Each kit includes two pre-formed economical EVA foam gaskets.
  • Gaskets include adhesive backing for easy installation.
  • Allows enclosure to be machined and/or painted first and gasketed later
  • Gasket is applied to the lid (see photo example below).
  • Designed to meet IP 66 (with properly installed gasket and lid screws torqued at 55 cN.m).
  • EVA Foam gasket rated up to 65 degrees C.

• IP67 Upgrade
  • Each kit includes two pre-formed silicone gaskets.
  • Gaskets include adhesive backing for easy installation.
  • Allows enclosure to be machined and/or painted first and gasketed later.
  • Gasket is applied to the lid (see photo example below).
  • Tested to meet IP 67 (with properly installed gasket and lid screws torqued at 55 cN.m).
  • Silicone gasket has a temperature rating of -40C to +150C
