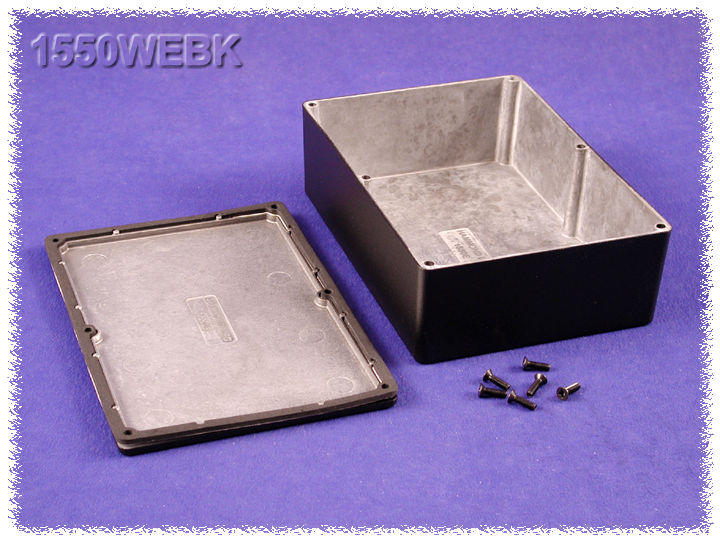

1550WEBK

172 × 121 × 55 mm

Material: Aluminium

Category: All Products, Diecast & Metal

Waterproof Die Cast Enclosure
£16.11

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Features

  • Rugged, diecast aluminium alloy (tough yet easy to machine), electronic instrument enclosure.
  • Available in natural vibra finish OR in light textured, black powder paint.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining.
  • Black screws are included to enhance the assembled appearance.
  • Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.? The enclosure does not provide shielding when water-tight gaskets are installed.
  • M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid into factory tapped holes.
  • Designed to meet IP 54 without a gasket or IP66 with a gasket. ?IP67 upgraded gaskets are available.
  • All sizes except 1550Z101 carry an impact rating of IK08 per IEC62262
  • No internal ribs for easy installation of connectors without interference or additional milling.
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
  • Add 0.16″ (4 mm) to enclosure depth for lid

Replacement Hardware

  • Replacement screws for the unpainted series ?-?1550MS100?- Package of 100
  • Replacement screws for the black series -?1550MS100BK?- Package of 100

Upgrade To Tamper-Resistant (Torx With Pin) Hardware

  • Tamper-resistant screws for the unpainted series – 1550MS50T- Package of 50
  • Tamper-resistant screws for the black series -1550MS50TBK – Package of 50
  • Driver bit for tamper-proof screws -?SCDRIVET15-2

Accessory Gasket Kits

IP66

  • Each kit includes two pre-formed economical EVA foam gaskets.
  • Gaskets include adhesive backing for easy installation.
  • Allows enclosure to be machined and/or painted first and gasketed later
  • Gasket is applied to the lid (see photo example below).
  • Designed to meet IP 66 (with properly installed gasket and lid screws torqued at 55 cN.m).
  • EVA Foam gasket rated up to 65 degrees C.

IP67 Upgrade

  • Each kit includes two pre-formed silicone gaskets.
  • Gaskets include adhesive backing for easy installation.
  • Allows enclosure to be machined and/or painted first and gasketed later.
  • Gasket is applied to the lid (see photo example below).
  • Tested to meet IP 67 (with properly installed gasket and lid screws torqued at 55 cN.m).
  • Silicone gasket has a temperature rating of -40C to +150C

Technical

Dimensions 172 × 121 × 55 mm
Colour

Black

Height

55

Width

121

Length

172

IP Rating

IP66

Manufacturer

Hammond

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Board Mounting

Feature

RF Shielded

Series

1550

Downloads

1550WEBK

530.24 KB
