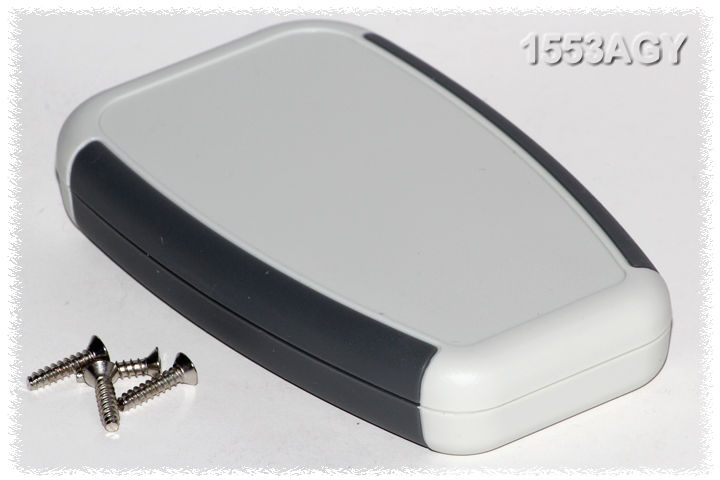

1553AGY
863.14 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
£5.23
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Ergonomically designed for hand-held comfort.
- Choice of five sizes and six colour combinations.
- All sizes except 1553A available with or without battery compartment.
- moulded in general purpose ABS plastic with a soft, plastic overmold for comfortable grip.
- Top cover is recessed for membrane display or keypad.
- P.C. board standoffs are moulded into case (see drawings or photos for more details).
- Includes removable front panel (for easy modifications) and assembly hardware (except for smallest 1553A units).
- Battery door & compartment version includes 4 battery clips (for 2 – AA batteries) and a 9 volt (PP3) battery clip.
- Gray 1553 series enclosures include nickel plated screws. All other colours use black screws. Refer to product datasheets for correct part numbers.
- P.C. Board mounting screws are not included. Order part number 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100).
- Designed to meet IP54
- For similar enclosures designed for water-tight applications, try series
1553W
Photo Features:
Perfect for Hand-Held use.
Battery version comes with clips for AA for 9V.
Additional colour Combinations Available
Accessories:
ProtoBoard Printed Circuit Boards:
- High quality FR4 glass epoxy board
- Specifically designed to fit enclosures shown in the table below
- Mounting screws included
- Lead free etched copper PCB with a flux coating for easy soldering
- 0.042" holes drilled on 0.1" centers
- For more information link to the BPS (BusBoard Prototype Systems) website www.busboard.com
Belt/ Pocket Clip Option:
- moulded from touch nylon
- Includes 2 nylon screws (insulated to avoid interference)
- Mounting Template Included (user drilling required)
IR End Panels
- Replaces existing front plastic panel.
- Dark red plastic filter (transparent to IR).
For all 1553 "B" sized enclosures – Part Number
For all 1553 "D" sized enclosures – Part Number
Technical
| Dimensions | 100 × 61 × 17 mm |
|---|---|
| Colour | Grey |
| Height | 17 |
| Width | 61 |
| Length | 100 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Recessed Lid |
| Series | 1553 |
