1553BBKBK

117 × 79 × 25 mm

Material: ABS

Category: All Products, Hand-Held

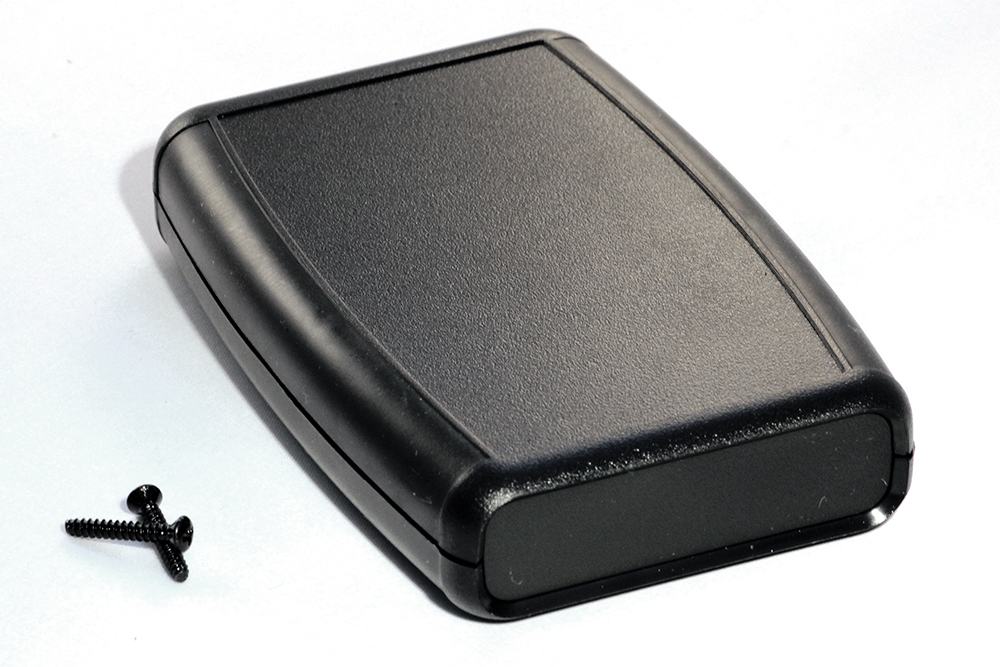

Soft Sided Hand-Held Enclosure
£5.79

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Ergonomically designed for hand-held comfort.
  • Choice of five sizes and six colour combinations.
  • All sizes except 1553A available with or without battery compartment.
  • moulded in general purpose ABS plastic with a soft, plastic overmold for comfortable grip.
  • Top cover is recessed for membrane display or keypad.
  • P.C. board standoffs are moulded into case (see drawings or photos for more details).
  • Includes removable front panel (for easy modifications) and assembly hardware (except for smallest 1553A units).
  • Battery door & compartment version includes 4 battery clips (for 2 – AA batteries) and a 9 volt (PP3) battery clip.
  • Gray 1553 series enclosures include nickel plated screws.  All other colours use black screws.  Refer to product datasheets for correct part numbers.
  • P.C. Board mounting screws are not included. Order part number 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100).
  • Designed to meet IP54
  • For similar enclosures designed for water-tight applications, try series 1553W

Photo Features:

Perfect for Hand-Held use.

Battery version comes with clips for AA for 9V.


Additional colour Combinations Available


Accessories:

ProtoBoard Printed Circuit Boards:

  • High quality FR4 glass epoxy board
  • Specifically designed to fit enclosures shown in the table below
  • Mounting screws included
  • Lead free etched copper PCB with a flux coating for easy soldering
  • 0.042" holes drilled on 0.1" centers
  • For more information link to the BPS (BusBoard Prototype Systems) website www.busboard.com

1553BPCB – works with 1553 sizes "B" and "C"

1553DBPCB  – works with 1553 size "D"

Belt/ Pocket Clip Option:

  • moulded from touch nylon
  • Includes 2 nylon screws (insulated to avoid interference)
  • Mounting Template Included (user drilling required)

1599CLIP (black)

1599CLIPGY (gray)

IR End Panels

  • Replaces existing front plastic panel.
  • Dark red plastic filter (transparent to IR).

For all 1553 "B" sized enclosures – Part Number 1553BIR-BULK

For all 1553 "D" sized enclosures – Part Number 1553DIR-BULK

Technical

Dimensions 117 × 79 × 25 mm
Colour

Black

Height

25

Width

79

Length

117

IP Rating

N/A

Manufacturer

Hammond

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Hand-Held

Feature

Recessed Lid

Series

1553
