Product Details

Key Features:

• Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
• ABS Versions are moulded from general purpose Material which carries a flammability rating of UL94-HB. ?For indoor use.

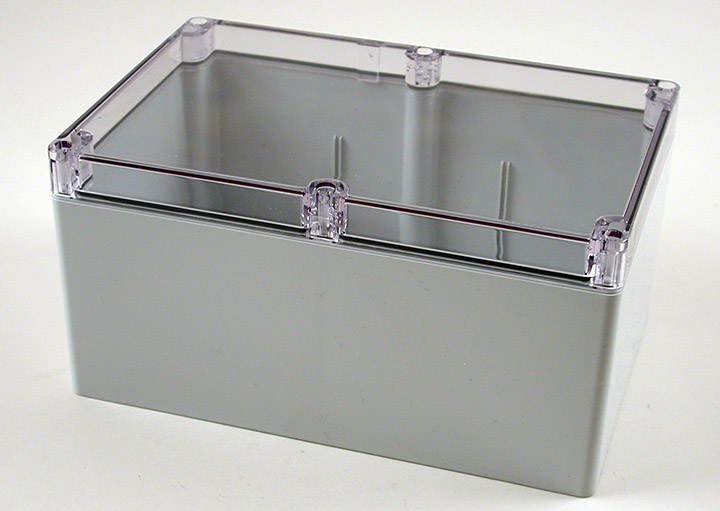

• Polycarbonate versions are UV stabilized for outdoor use. ?Grey polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
• Polycarbonate versions are cUL and UL 508A listed (File # E65324). ?ABS plastic versions are not UL listed.
• Enclosure colour is a light grey (RAL 7035).
• Gasketed lid with two piece ?tongue & groove? construction provides protection against access of oil, dust and water.
• Replaceable gasket is one piece made from high temperature, U.L. listed silicone.? Supplied loose inside the enclosure (not pre-installed).
• Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.? (Except 1554/55 V size which is 4,4X only)
• ABS Plastic versions are designed to meet IP66.
• Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
• Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
• Internal features are maximized for mounting options and vary with size:
• Internal DIN rail mounting tabs moulded into most models, except sizes ?C? and ?D?.
• Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (?B?).
• Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are moulded in all but the smallest size (?B?).
