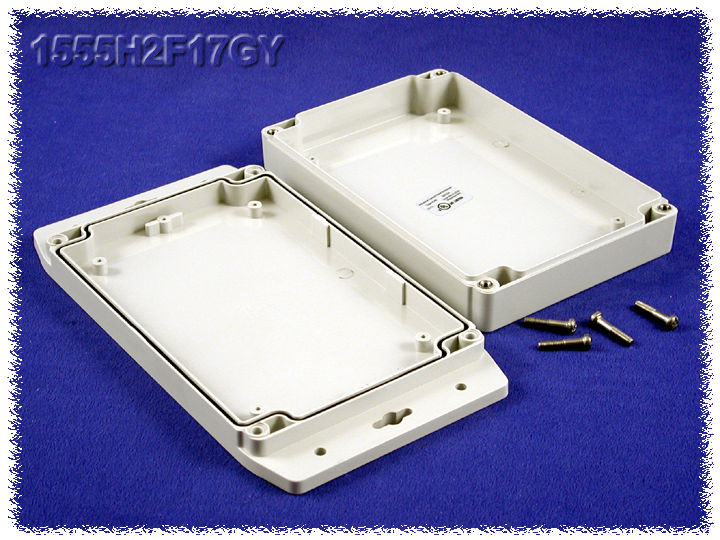

1555H2F17GY

180 × 120 × 37 mm

Material: Polycarbonate

Category: All Products, General Purpose Plastic

Waterproof PC Enclosure Flanged lid
£17.52

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features

  • Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
  • ?Styled? lid version has three main advantages over our flat lid (1554 series).
  • Smooth recessed surface on lid for a membrane keypad or label
  • Standoffs moulded in the interior of the lid (except for size ?B?). ?Designed for #6 self tapping screws
  • More modern ?styled? look vs. our traditional flat lid (1554 series)
  • ABS Versions are moulded from general purpose Material which carries a flammability rating of UL94-HB. ?For indoor use.
  • Polycarbonate versions are UV stabilized for outdoor use. ?Grey polycarb carries a UL94-5VA rating.
  • Polycarbonate versions are UL 508A listed (File # E65324).
  • Enclosure colour is a light grey (RAL 7035).
  • Gasketed lid with two piece ?tongue & groove? construction provides protection against access of oil, dust and water.
  • Replaceable gasket is one piece made from high temperature, U.L. listed silicone.? Supplied loose inside the enclosure (not pre-installed).
  • Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.? (Except 1554/55 V size which is 4,4X only)
  • ABS Plastic versions are designed to meet IP66.
  • Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly.? All hardware is designed to avoid corrosion caused by harsh environments over time.
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
  • Internal features are maximized for mounting options and vary with size:
  • Internal DIN rail mounting tabs moulded into most models, except sizes ?C? and ?D?.
  • Threaded (M3) integral brass inserts and/or standoffs (for #6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (?B?).
  • Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are moulded in all but the smallest size (?B?).

Technical

Dimensions 180 × 120 × 37 mm
Colour

Grey

Height

37

Width

120

Length

180

IP Rating

IP67

Manufacturer

Hammond

Material

Polycarbonate

Flammability

UL94-5VA

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

Waterproof

Series

1555

Downloads

1555H2F17GY

612.17 KB
