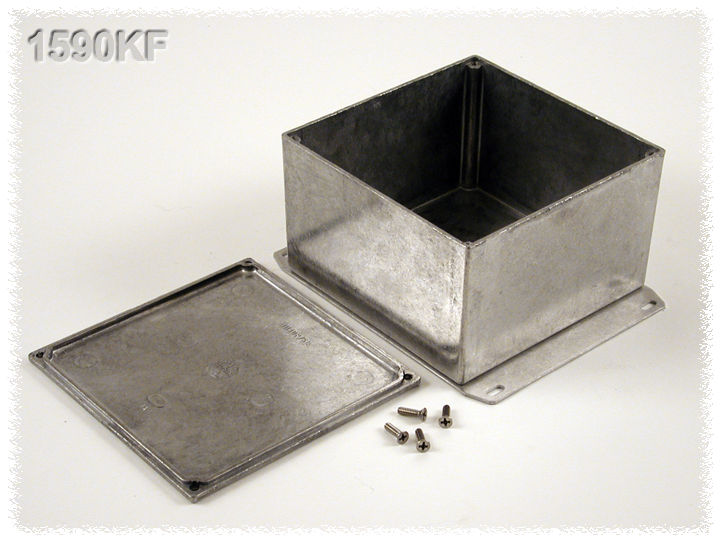

1590KF
125 × 125 × 75 mm
Material: Aluminium
Category: All Products, Diecast & Metal
Diecast Enclosure, Flanged Base
£18.58
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features
- Rugged, diecast aluminium alloy (tough – yet easy to machine), electronic instrument enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining.
- Black screws are included to enhance appearance.
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. ?See details below or in drawings.
- Standard versions are designed to meet IP54.
- Water-tight versions are designed to meet IP65 and include a gasket.? Gasket is supplied loose inside the enclosure (not pre-installed).
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
No mounting flanges
Spot-welded bottom flange
Wall Mounting flange integrated into lid.
Lap joint construction where lid and box meet.
Water-tight versions and gasket upgrades available for most sizes.
Technical
| Dimensions | 125 × 125 × 75 mm |
|---|---|
| Colour | Natural |
| Height | 75 |
| Width | 125 |
| Length | 125 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | N/A |
| Series | 1590 |
