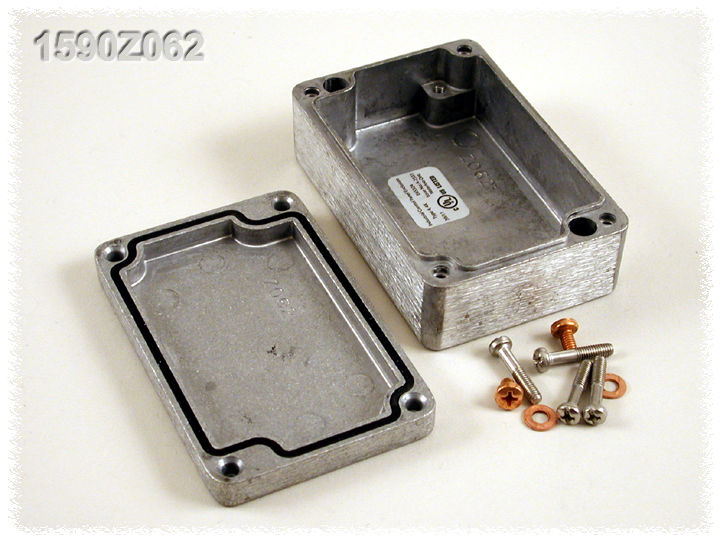

1590Z062

98 × 64 × 36 mm

Material: Aluminium

Category: All Products, Diecast & Metal

Waterproof Diecast Enclosure
£13.85

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Rugged, diecast aluminium alloy (tough yet easy to machine), electronic instrument enclosure.
  • Two piece ?tongue & groove? construction with a replaceable one-piece silicone rubber gasket provides protection against access of dust and water.? Gasket supplied loose inside the enclosure (not pre-installed).
  • Gasket has a temperature rating of -40C to +150C
  • Ideal for repetitive opening and closing.
  • Four recessed stainless steel machine screws secure lid into tapped holes.
  • Easy to Wall Mount using ?through box – blind hole? construction, outside of gasket protection.
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws). (NOTE: Except for 1590Z060, 1590Z061, 1590Z062, and 1590Z063)
  • Designed to meet IP68.
  • North American Mark of Safety – UL & UL listed. Certified to Type 4, 4X, 6, 6P.
  • All sizes except 1590Z060 carry an impact rating of IK08 per IEC62262
  • 16ga galvanized steel inner panels are available for most sizes, and are sold separately (refer to table below).
  • Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth grey (RAL 7001).
  • For non-metallic (glass reinforced polyester) versions of these enclosures, see series 1590ZGRP
  • Lid screws are self captivating (lid is threaded with first installation of screws)
  • Lid screws and Wall Mounting holes are outside the gasket channel.
  • Inner panels are available for most sizes and are sold separately.

Technical

Dimensions 98 × 64 × 36 mm
Colour

Natural

Height

36

Width

64

Length

98

IP Rating

IP66

Manufacturer

Hammond

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

N/A

Series

1590

Downloads

1590Z062

826.68 KB
