1590ZGRP081

80 × 75 × 55 mm

Material: Polyester

Category: All Products, Diecast & Metal

Waterproof GRP Enclosure
£16.42

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Moulded from a grey, glass reinforced polyester. Smooth finish.
  • Includes gasketed lid with two piece ?tongue & groove? construction.
  • Heavy duty, thick wall design.
  • North American Mark of Safety – C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) – File #E65324 and IP66 Rated
  • Impact rating of IK08 per IEC62262
  • Lid contains self captivated stainless steel screws.
  • Gasket Material is Mohogumi rubber (EDPM). Heat resistance 100-120 degree C, cold -40 degree C.
  • Easy Wall Mounting via ?through box – blind hole? construction, outside of the gasket protection (see photos below).

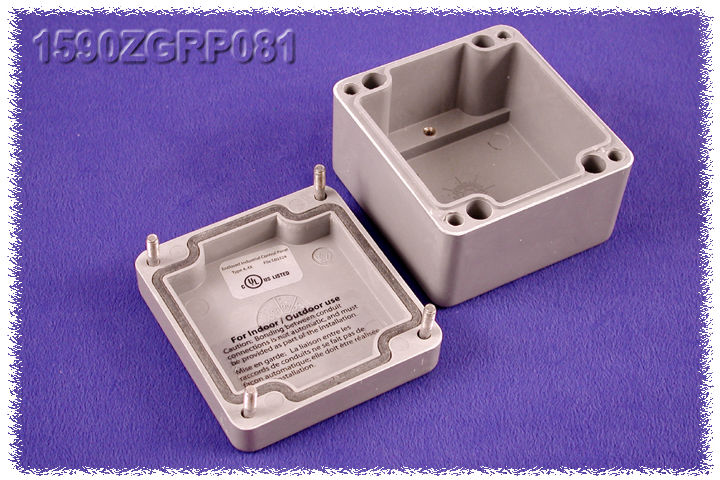

  • Internal mounting shelf & bonding / mounting nuts moulded in (see ?open? photos or drawings for more details).
  • Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below).

Technical

Dimensions 80 × 75 × 55 mm
Colour

Grey

Height

55

Width

75

Length

80

IP Rating

IP66

Manufacturer

Hammond

Material

Polyester

Flammability

N/A

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

N/A

Series

1590

Downloads

1590ZGRP081

391.61 KB
