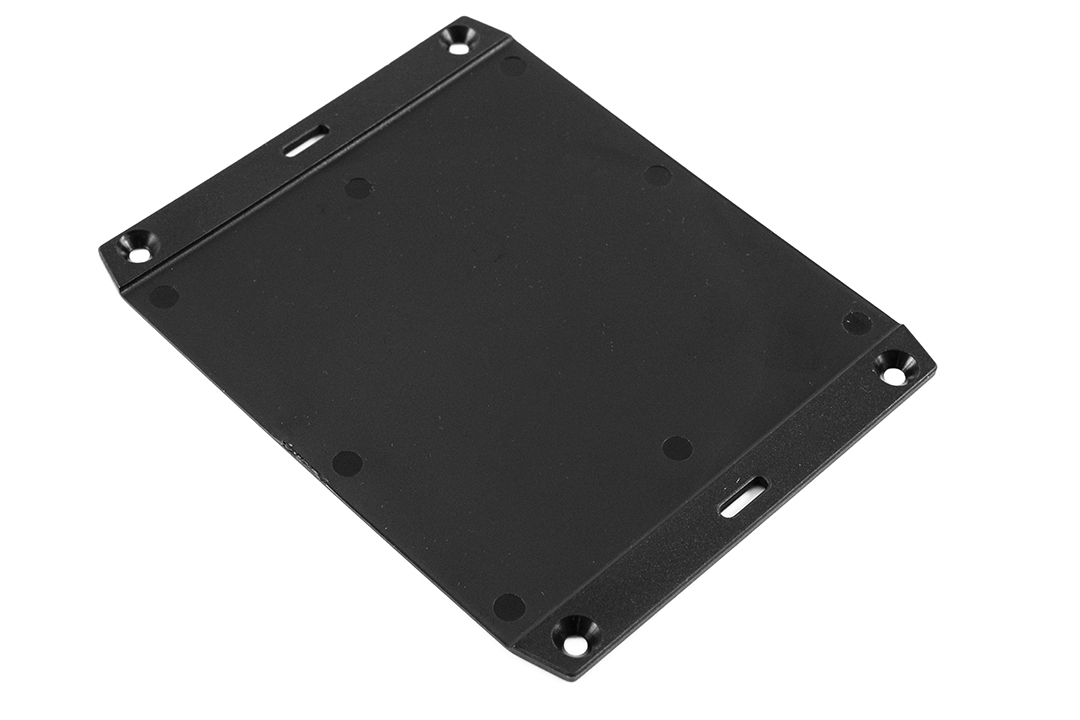

1591FUBK

145 × 117 × 3 mm

Material: ABS

Category: All Products, General Purpose Plastic

Flange - plastic
£2.93

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides – see photo to the right).
  • Integral card guides accept 1.5 mm (0.062?) P.C. cards.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Standard versions are moulded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
  • Economy versions are moulded from general purpose (not flame-retardant) plastic.
  • On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Economy versions are assembled with self tapping screws into fully plastic posts.
  • Black enclosures include black screws, while all others include standard nickel finish screws.

Alternatives

  • If EMI/ RFI Shielding is required, try series 1591R.
  • If card guides are not required or horizontal mounting of printed circuit boards is preferred, try series?1591XX.
  • For transparent polycarbonate versions, try series ?1591T.
  • Integral card guides accept 1.5 mm (0.062?) P.C. cards. ?Machine screws thread into brass bushing to attach the lid.
  • Available with Wall Mounting flanges moulded into the lid.
  • Also available with an accessory flange attached to the bottom.

Technical

Dimensions 145 × 117 × 3 mm
Colour

Black

Height

3

Width

117

Length

145

IP Rating

N/A

Manufacturer

Hammond

Material

ABS

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

N/A

Series

1591

Downloads

1591U-VFlange

96.92 KB
