Product Details

Key Features

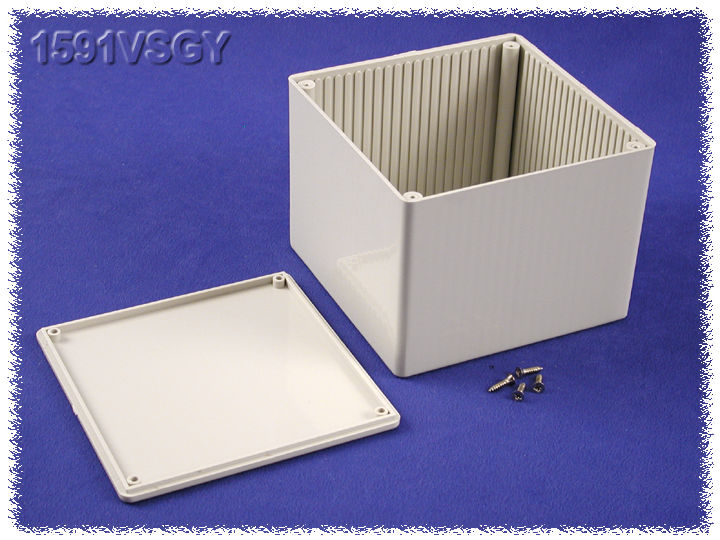

• Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides – see photo to the right).
• Integral card guides accept 1.5 mm (0.062?) P.C. cards.
• Lap joint construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Standard versions are moulded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
• Economy versions are moulded from general purpose (not flame-retardant) plastic.
• On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
• Economy versions are assembled with self tapping screws into fully plastic posts.
• Black enclosures include black screws, while all others include standard nickel finish screws.

Alternatives

• If EMI/ RFI Shielding is required, try series 1591R.
• If card guides are not required or horizontal mounting of printed circuit boards is preferred, try series?1591XX.
• For transparent polycarbonate versions, try series ?1591T.
• Integral card guides accept 1.5 mm (0.062?) P.C. cards. ?Machine screws thread into brass bushing to attach the lid. Available with Wall Mounting flanges moulded into the lid, also available with an accessory flange attached to the bottom.
