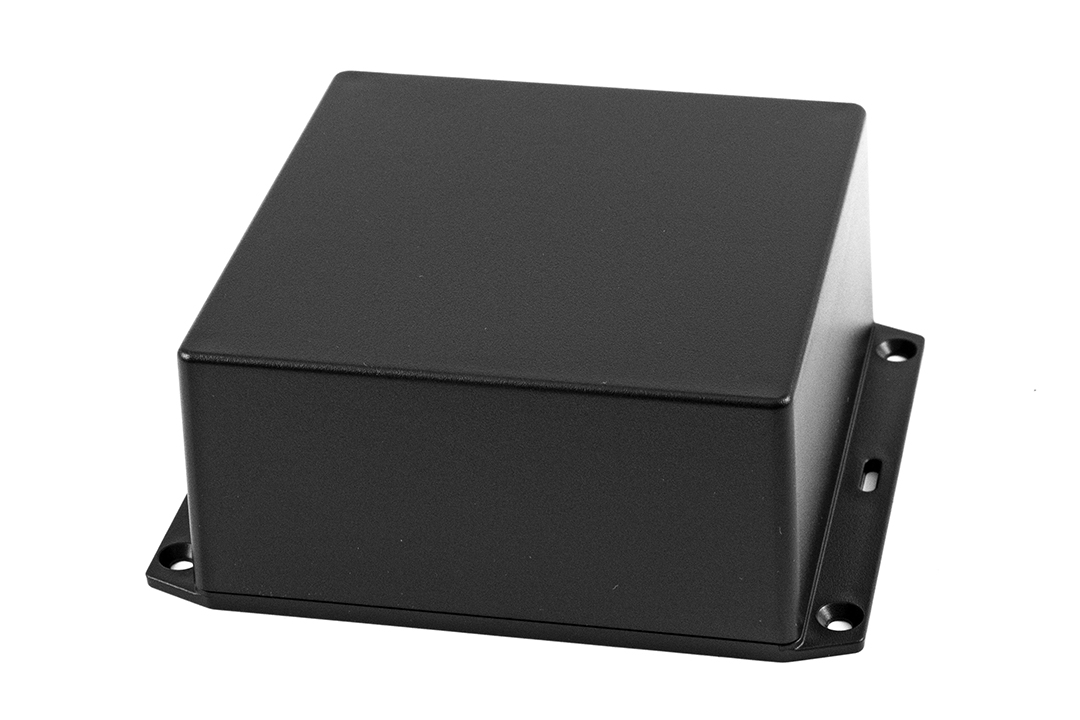

1591XXUSFLBK
123 × 123 × 61 mm
Material: ABS
Category: All Products, General Purpose Plastic
Multipurpose GPABS Enclosure, Flanged Lid
£6.55
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features
- Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides – see photo to the right).
- Integral card guides accept 1.5 mm (0.062?) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are moulded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are moulded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
Alternatives
- If EMI/ RFI Shielding is required, try series 1591R.
- If card guides are not required or horizontal mounting of printed circuit boards is preferred, try series?1591XX.
- For transparent polycarbonate versions, try series ?1591T.
Technical
| Dimensions | 123 × 123 × 61 mm |
|---|---|
| Colour | Black |
| Height | 61 |
| Width | 123 |
| Length | 123 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | N/A |
| Series | 1591 |
