1592ETCDBK

235 × 34 mm

Material: ABS

Category: All Products, Hand-Held

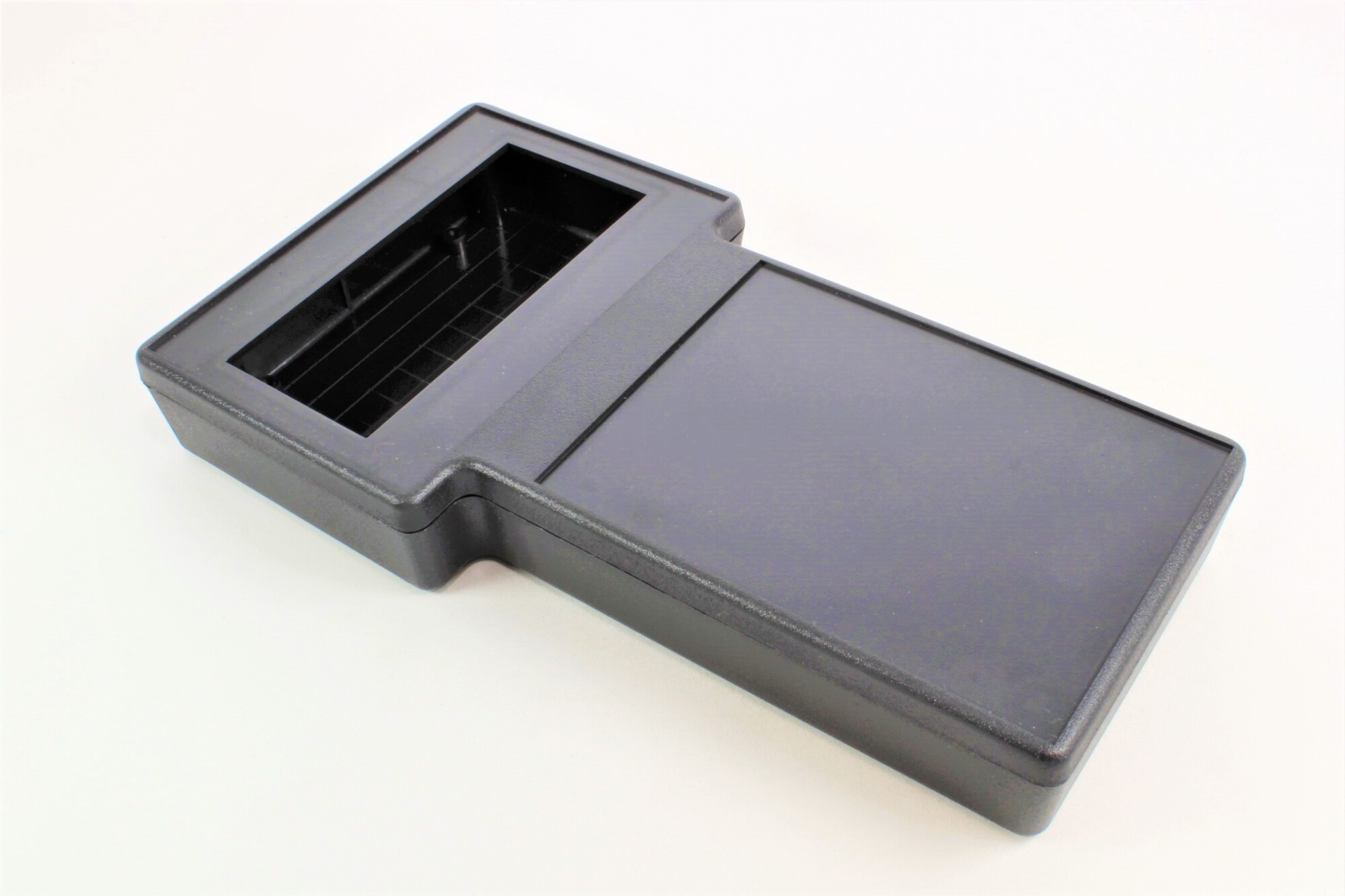

Hand-Held Display Enclosure
£10.69

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Perfect for instrument or mobile data enclosures requiring a keypad and display.
  • Available with either a solid display area or an opening with a clear lens
  • Solid display area is 122 mm x 85 mm (4.8 x 3.4) and will accommodate display boards up to 118 mm x 60 mm (4.6 x 2.37).
  • Clear polycarbonate lens 102 mm x 45 mm (4.0 x 1.77) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame.
  • The lens fits snugly into the case and provides protection from dirt and dust.
  • Moulded from flame retardant ABS plastic, choice of black or grey (Material carries a UL flammability rating of 94V-0).
  • The back of the case has been designed to accept a magnetic strip or hook & loop fabric mounting tab (see accessories below).
  • The display area has been insert tooled in order to provide the capability of custom moulding a low-cost display area to specific requirements.

Technical

Dimensions 235 × 34 mm
Colour

Black

Height

34

Width

N/A

Length

235

IP Rating

N/A

Manufacturer

Hammond

Material

ABS

Flammability

UL94-V0

Shape

T Shaped

Mounting

Hand-Held

Feature

Display Cut Out, Recessed Lid

Series

1592

Downloads

1592ETCDBK

463.25 KB
