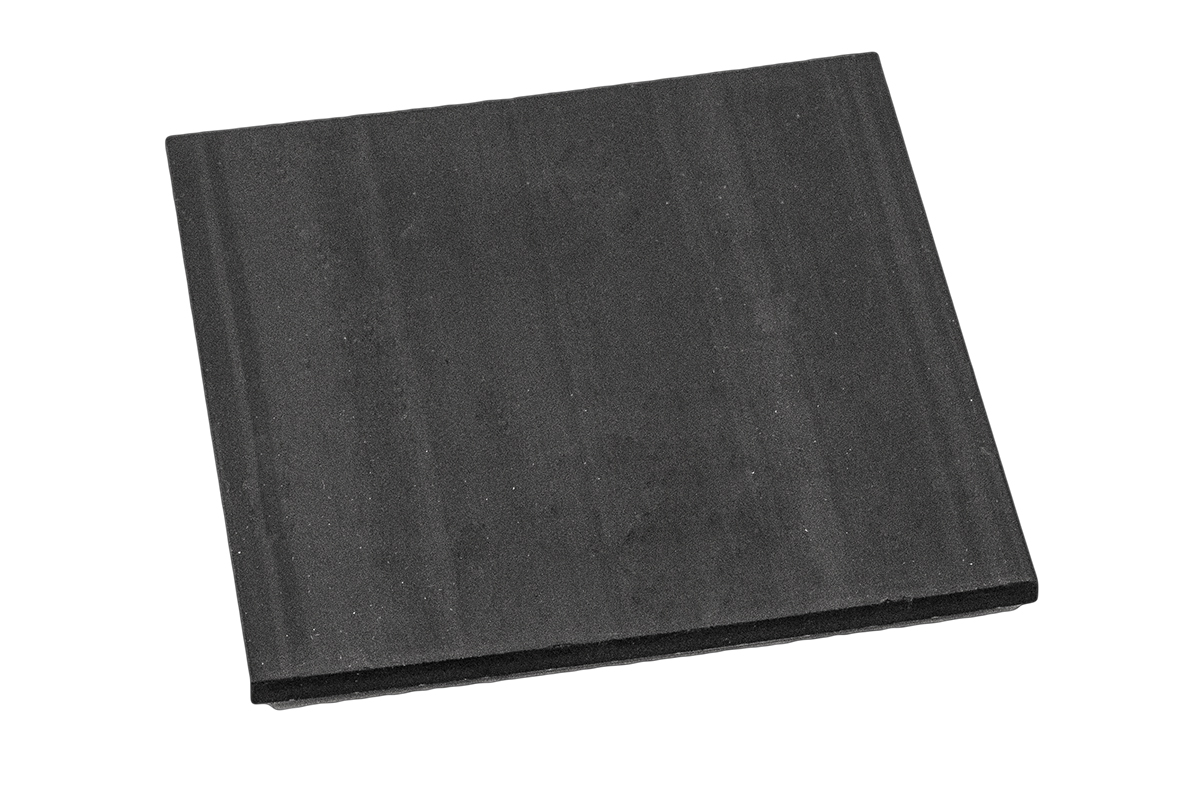

1592ETM
76 × 76 × 1 mm
Material: Magnet
Category: All Products, Hand-Held
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Perfect for instrument or mobile data enclosures requiring a keypad and display.
- Available with either a solid display area or an opening with a clear lens
- Solid display area is 122 mm x 85 mm (4.8” x 3.4”) and will accommodate display boards up to 118 mm x 60 mm (4.6” x 2.37”).
- Clear polycarbonate lens 102 mm x 45 mm (4.0” x 1.77”) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame.
- The lens fits snugly into the case and provides protection from dirt and dust.
- moulded from flame retardant ABS plastic, choice of black or grey (Material carries a UL flammability rating of 94V-0).
- The back of the case has been designed to accept a magnetic strip or “hook & loop” fabric mounting tab (see accessories below).
- The display area has been insert tooled in order to provide the capability of custom molding a low-cost display area to specific requirements.
1592 Series Accessories
nHook & Loop Mounting Strip
n
nGasket Kit
n
nRubber Feet
n
nMagnetic Mounting Strip
n
Technical
| Dimensions | 76 × 76 × 1 mm |
|---|---|
| Colour | N/A |
| Height | 1 |
| Width | 76 |
| Length | 76 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Magnet |
| Flammability | N/A |
| Shape | T Shaped |
| Mounting | Hand-Held |
| Feature | Recessed Lid |
| Series | 1592 |
