1593XTBU
346.82 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST

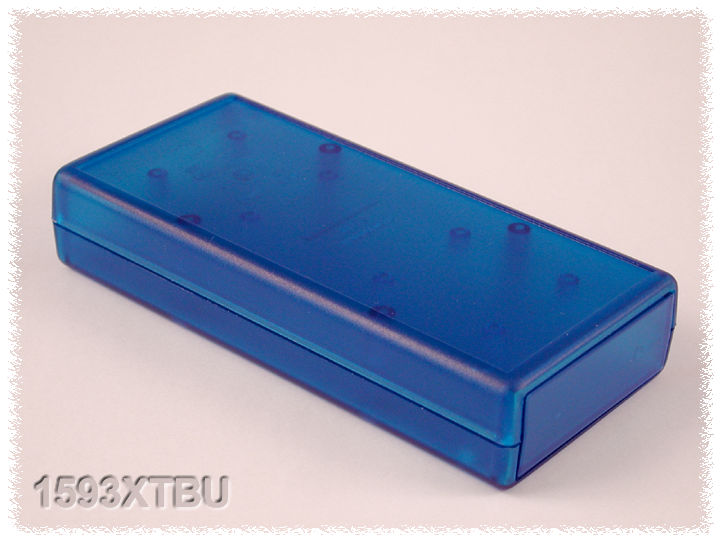

1593XTBU
140 × 66 × 28 mm
Material: ABS
Category: All Products, Desktop & Instrument
Instrument Case, GPABS
£5.25
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Ergonomically designed for a comfortable fit into the user?s hand.
- Designed to meet IP54 ratings.
- Recessed top for membrane display or pad.
- Units with battery door use our long life “three snap” door.
- Lap joint construction provides protection against dust accumulation and splashing water.
- moulded in a choice of black, grey, or transparent blue?general purpose ABS plastic with a satin texture.
- Unit is secured with self tapping screws.
- Black and transparent blue enclosures include black screws, grey includes nickel finish screws.
Notes:
- Due to their low profile design, the 1593S & 1593T models will only accept AAA batteries. The two AAA battery holder kit (below) is the largest holder that will fit.
Contoured Panel Option
Sizes K, L, N, D, & X comes with flat and contoured panels to match the profile of the case..
Battery Compartment Style
Sizes S, P, T, Q, & Y come with an integrated battery compartment and door.
No Panels (Size J Only)
Application Spotlight: Smart Card Reader
The 1593NBK, 1593NGY are designed to house smart card readers (shown with modified end panel).
1593 Series Accessories
Infrared Panels
Sold in packs of 10 panels.? See tables below for compatibility.
PC Board
See tables below for compatibility.
aluminium End Panels
Supplied with plastic protective covering.? See tables below for compatibility.
Belt Clip
Plastic clip with nylon screws (for insulation).? Includes a drill template for mounting.
1599CLIP (black)
1599CLIPGY (gray)
Technical
| Dimensions | 140 × 66 × 28 mm |
|---|---|
| Colour | Transparent-Blue |
| Height | 28 |
| Width | 66 |
| Length | 140 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Recessed Lid |
| Series | 1593 |
