Product Details
Features:
- Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Heavy duty, thick wall design with an average wall thickness of .13 (3.3 mm).
- Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
- On standard and water-tight versions, countersunk lid is secured with four M3 x 0.5 – 0.71 (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
- Economy version is moulded in general purpose ABS plastic.
- Economy version utilizes self tapping screws into plastic posts (no brass inserts).

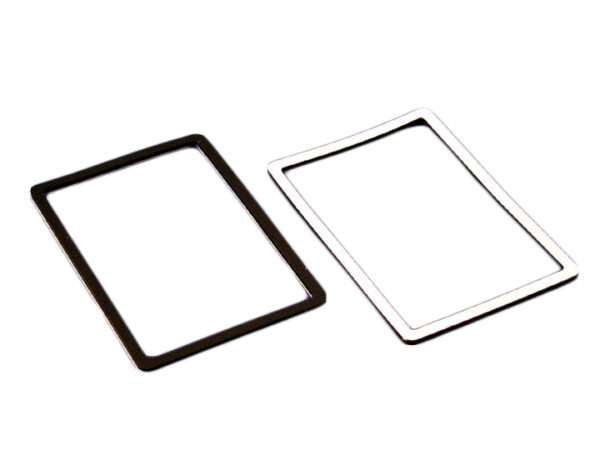

- Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
- Water-tight versions are rated IP66.
- Stocked in black and grey with matte textured finish.
- For EMI/ RFI shielded versions, try 1594RFI or 1594R.
Notes:
- Replacement machine screws for standard versions are sold in packs of 100 (part number 1594MS100)
- Replacement self-tapping screws for economy versions are sold in packs of 100 (part number 1594TS100)
- Replacement machine screws with o-rings for water-tight versions are sold in packs of 100 (part number 1594WMS100)
Technical
| Colour | N/A |
|---|---|
| Height | N/A |
| Width | N/A |
| Length | N/A |
| IP Rating | IP65 |
| Manufacturer | Hammond |
| Material | Rubber |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | N/A |
| Feature | N/A |
| Series | 1594 |
