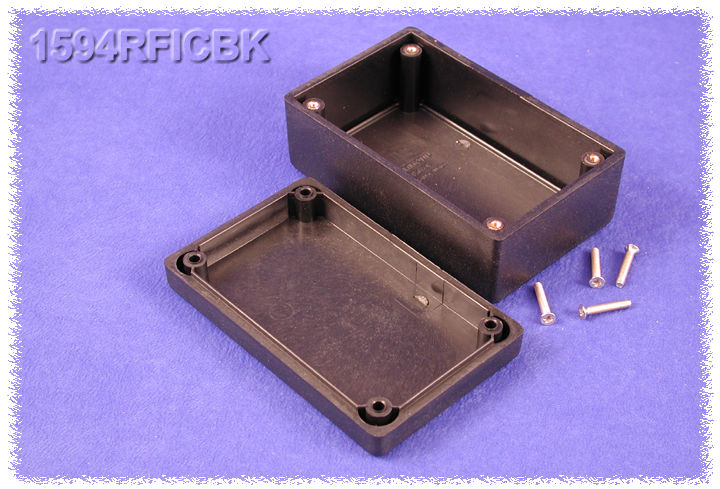

1594RFICBK
105 × 66 × 45 mm
Material: ABS
Category: All Products, Heavy Duty
Heavy Duty FRABS Enclosure, Conductive
£15.13
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features:
- Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Heavy duty, thick wall design with an average wall thickness of .13? (3.3 mm).
- Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
- On standard and water-tight versions, countersunk lid is secured with four M3 x 0.5 – 0.71? (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
- Economy version is moulded in general purpose ABS plastic.
- Economy version utilizes self tapping screws into plastic posts (no brass inserts).
- Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
- Water-tight versions are rated IP66.
- Stocked in black and grey with matte textured finish.
- For EMI/ RFI shielded versions, try ?1594RFI? or ?1594R.?
Notes:
- Replacement machine screws for standard versions are sold in packs of 100 (part number 1594MS100)
- Replacement self-tapping screws for economy versions are sold in packs of 100 (part number 1594TS100)
- Replacement machine screws with o-rings for water-tight versions are sold in packs of 100 (part number 1594WMS100)
Technical
| Dimensions | 105 × 66 × 45 mm |
|---|---|
| Colour | Black |
| Height | 45 |
| Width | 66 |
| Length | 105 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | RF Shielded |
| Series | 1594 |
