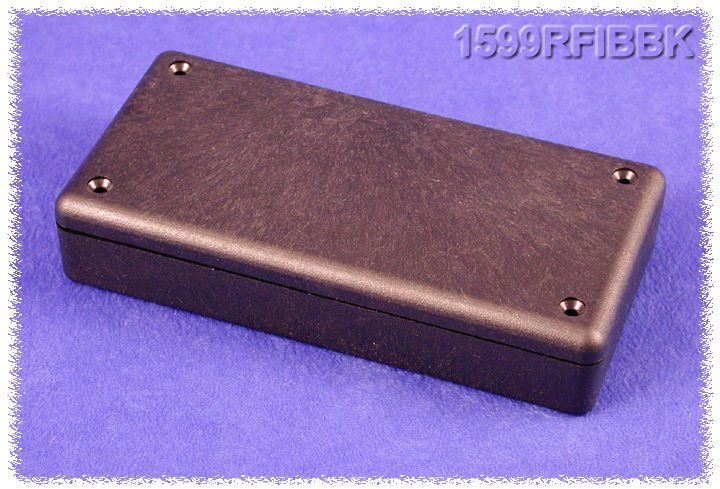

1599RFIBBK
130 × 65 × 25 mm
Material: ABS
Category: All Products, Hand-Held
Shielded Hand-Held Enclosure
£10.33
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features:
- Attractively styled and ergonomically designed for use as a hand-held instrument enclosure.
- Standard version is moulded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
- Economy version is moulded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
- Recessed top for membrane display or pad.
- Lap joint construction provides protection against access of dust and splashing water.
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
- Designed to meet IP54.
- Two keyhole knockouts are moulded into the inside of the base to facilitate Wall Mounting installation.
- If EMI/ RFI shielding is required, try 1599RFI series
Optional accessories include belt clips and battery dividers.
Standard models use machine screws into brass bushings. Economy models use self tapping screws.
All sizes available with or without battery door. All models have PC board standoffs on the inside top and bottom.
Technical
| Dimensions | 130 × 65 × 25 mm |
|---|---|
| Colour | Black |
| Height | 25 |
| Width | 65 |
| Length | 130 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held, Wall Mount |
| Feature | Recessed Lid |
| Series | 1599 |
