1599RFIKBKBAT
173.79 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST

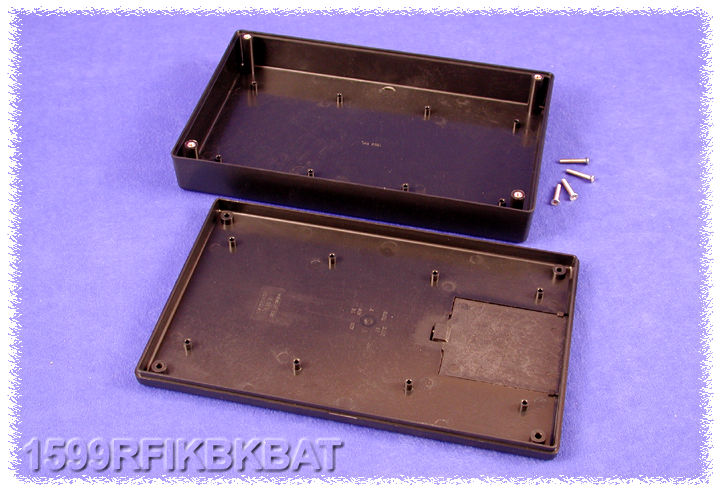

1599RFIKBKBAT
220 × 140 × 40 mm
Material: ABS
Category: All Products, Hand-Held
Shielded Hand-Held Enclosure
£24.24
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features:
- Attractively styled and ergonomically designed for use as a ?hand-held? instrument enclosure.
- Standard version is moulded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
- Economy version is moulded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
- Recessed top for membrane display or pad.
- Lap joint construction provides protection against access of dust and splashing water.
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
- Designed to meet IP54.
- Two keyhole knockouts are moulded into the inside of the base to facilitate Wall Mounting installation.
- If EMI/ RFI shielding is required, try 1599RFI series
Photo Features:
Optional accessories include belt clips and battery dividers.
Standard models use machine screws into brass bushings. Economy models use self tapping screws.
All sizes available with or without battery door. All models have PC board standoffs on the inside top and bottom.
Accessories:
Screws:
- 50 pack of optional PC board screws (#4 x 1/4″ Self-Tapping), part number 1593ATS50
- 100 pack of optional PC board screws (#4 x 1/4″ Self-Tapping), part number? 1593ATS100
Replacement cover screws for flame retardant 1599B sizes:
- 100 pack of silver replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100
- 100 pack of black replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100BK
Replacement cover screws for flame retardant 1599E, H, & K sizes:
- 100 pack of silver replacement cover screws (M3 – 0.5 x 12 mm) 1599HMS100 – (nickel plated) Package of 100 or 1599HMS100BK (black oxide) Package of 100.
Replacement cover screws for economy versions:
- 1599B sizes:?100 pack of silver replacement cover screws (#4 x 3/4″ Self-Tapping), part number 1599BTS100
- 1599E, H, & K sizes: 100 pack of silver replacement cover screws (#4 x 5/8″ Self-Tapping), part number 1593MS100
Optional Battery Holders:
- Designed for our battery door enclosure (part numbers ending in BAT).
- Includes all the parts required to install the battery or batteries.
- Includes the battery holder, wires and foam anti-rattle pad.
- Refer to “Battery Holder Compatibility” table below.
Optional Battery Dividers:
- Grey ABS plastic panel barriers.
- Insert vertically into the P.C. card guides.
- Sold individually.
- Refer to “Enclosures” table below for compatibility.
Optional Belt Clip:
Black: 1599CLIP
Grey: 1599CLIPGY
- moulded from tough nylon (choice of Black or Grey).
- Includes 2 nylon screws (insulated to avoid internal interference).
- Mounting template included.
- Part numbers ending in “CP” come with these clips installed. ?All other 1599 enclosures are compatible.
Technical
| Dimensions | 220 × 140 × 40 mm |
|---|---|
| Colour | Black |
| Height | 40 |
| Width | 140 |
| Length | 220 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held, Wall Mount |
| Feature | Recessed Lid |
| Series | 1599 |
