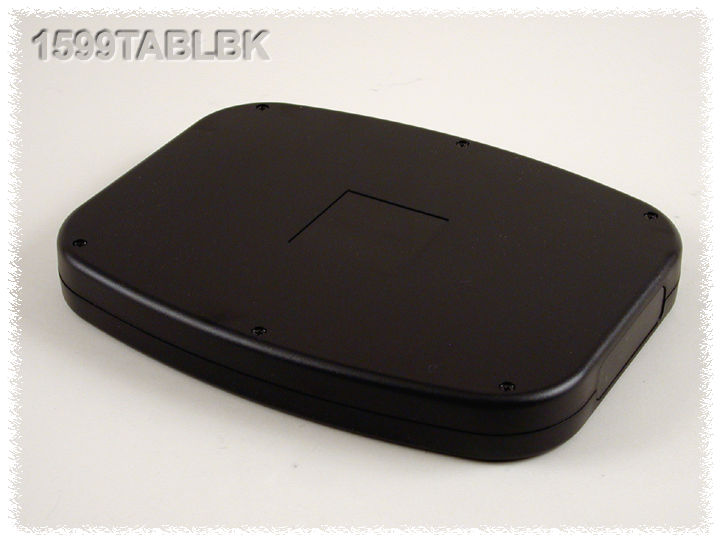

1599TABLBK
395.73 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
£13.23
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features:
- Attractively styled and ergonomically designed for use as a hand-held instrument enclosure.
- Standard version is moulded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
- Economy version is moulded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
- Recessed top for membrane display or pad.
- Lap joint construction provides protection against access of dust and splashing water.
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
- Designed to meet IP54.
- Two keyhole knockouts are moulded into the inside of the base to facilitate Wall Mounting installation.
- If EMI/ RFI shielding is required, try 1599RFI series
- Optional accessories include belt clips and battery dividers.
- Standard models use machine screws into brass bushings. Economy models use self tapping screws.
- All sizes available with or without battery door. All models have PC board standoffs on the inside top and bottom.
- 50 pack of optional PC board screws (#4 x 1/4″ Self-Tapping), part number?1593ATS50
- 100 pack of optional PC board screws (#4 x 1/4″ Self-Tapping), part number? 1593ATS100
Technical
| Dimensions | 240 × 190 × 30 mm |
|---|---|
| Colour | Black |
| Height | 30 |
| Width | 190 |
| Length | 240 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held, Wall Mount |
| Feature | Recessed Lid |
| Series | 1599 |
