2950 Series ABS Handheld Enclosure_D
207.63 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
2950-39B
135 × 70 × 24 mm
Material: ABS
Category: All Products, Hand-Held
2950 Series IR pocket case enclosure with battery compartment
£3.28
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

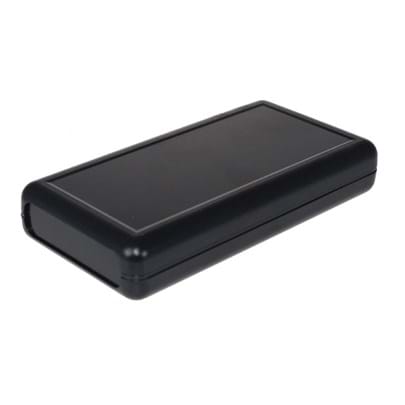

2950-39B – 2950 Series IR pocket case enclosure with battery compartment
2950 Series IR Pocket Case 135x70x24mm, Black HB Material
Moulded in high impact ABS or UL94-V0 ABS
Low profile moulding
Pocket sized cases
Recesses top & base
Snap-on battery compartment on lid
PCB pillars in lid & base
2950 series has been designed to meet the requirements of IP54
Technical
| Dimensions | 135 × 70 × 24 mm |
|---|---|
| Colour | Black |
| Height | 24 |
| Width | 70 |
| Length | 135 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Recessed Lid, Recessed Base, Battery Compartment |
| Series | 2950 |
Downloads
2950-39B
149.31 KB
