2970 Series T-style Handheld Enclosure_D
237.35 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
2970-28GSBC
210 × 110 × 41 mm
Material: ABS
Category: All Products, Hand-Held
2970 Series Ergo T Style Enclosure
£10.30
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
2970-28GSBC – 2970 Series Ergo T Style Enclosure

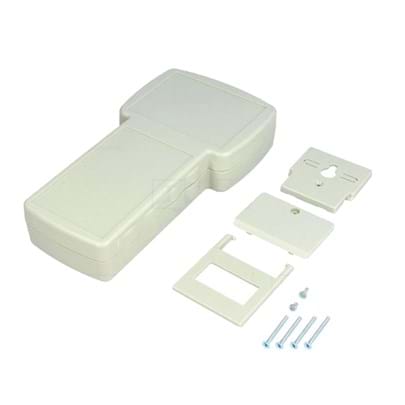

2970 Series Ergo T-Style ABS Enclosure, 210x110x41mm, solid front, battery compartment, grey. Ideal for Hand-Held industrial applications
Moulded in high impact ABS
Large LCD cut-out area
Available with or without battery compartment and display aperture
Recesses in lid for membrane keypads or overlays
Removable tilt stand supplied as standard
2970 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
Technical
| Dimensions | 210 × 110 × 41 mm |
|---|---|
| Colour | Grey |
| Height | 41 |
| Width | 110 |
| Length | 210 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | T Shaped |
| Mounting | Hand-Held |
| Feature | Battery Compartment, Recessed Lid |
| Series | 2970 |
