3400 Series Multipurpose Electronic Equipment Enclosure_D
327.66 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
3400-31
90 × 50 × 24 mm
Material: ABS
Category: All Products, General Purpose Plastic
3400 Series Multipurpose Electronic Equipment Case
£1.62
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

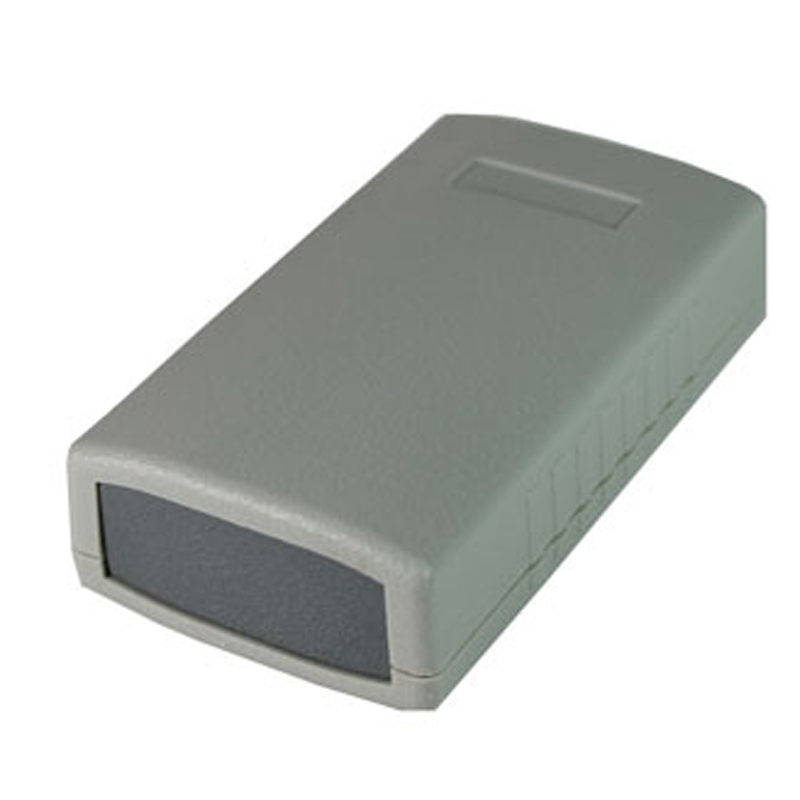

3400-31 – 3400 Series Multipurpose Electronic Equipment Case
3400 Series End Panel Design Enclosure, High Impact UL94-HB, 90x50x24mm
Lid, base and end panels moulded in high impact UL94-HB ABS
Integral mounting guides in U-shell lid and base for vertical PCB mounting
Bosses in base and lid for horizontal PCB mounting
Ergonomically curved lid and base
Four part construction for complete access and fitting of electronics
Four M3 or self-tapping screws countersunk into base and fixed into lid
Textured non-scratch surface
3400 series has been designed to meet the requirements of IP54
Technical
| Dimensions | 90 × 50 × 24 mm |
|---|---|
| Colour | Grey |
| Height | 24 |
| Width | 50 |
| Length | 90 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square, Rounded Design |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 3400 |
Downloads
3400-31
218.85 KB
