3400-54

190 × 100 × 60 mm

Material: ABS

Category: All Products, General Purpose Plastic

3400 Series Multipurpose Electronic Equipment Case
£7.09

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

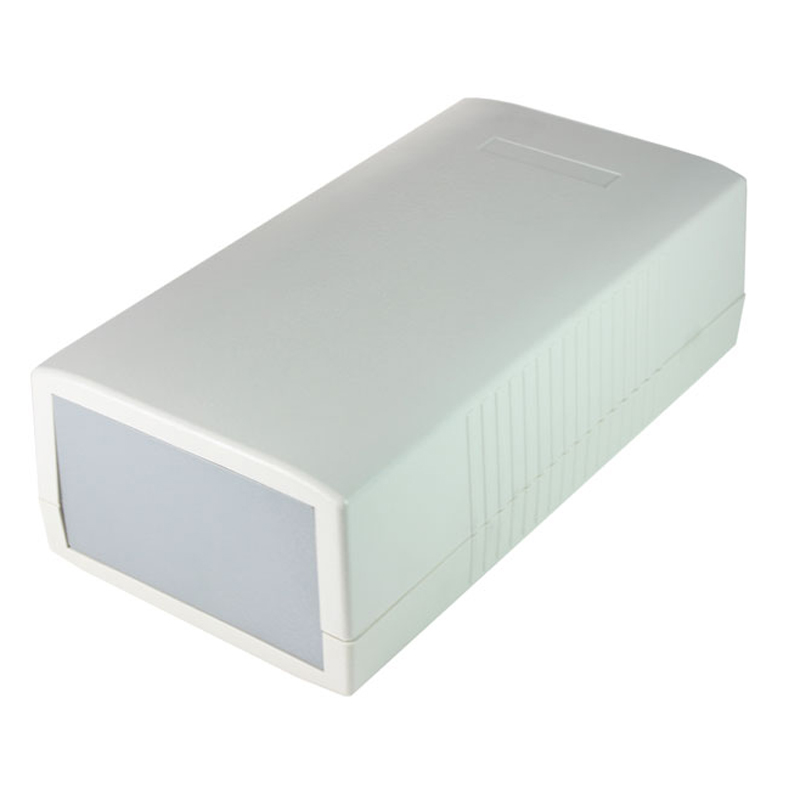

3400-54 – 3400 Series Multipurpose Electronic Equipment Case

3400 Series End Panel Design Enclosure, High Impact UL94-HB, 190x100x60mm

Lid, base and end panels moulded in high impact UL94-HB ABS
Integral mounting guides in U-shell lid and base for vertical PCB mounting
Bosses in base and lid for horizontal PCB mounting
Ergonomically curved lid and base
Four part construction for complete access and fitting of electronics
Four M3 or self-tapping screws countersunk into base and fixed into lid
Textured non-scratch surface
3400 series has been designed to meet the requirements of IP54

Technical

Dimensions 190 × 100 × 60 mm
Colour

Grey

Height

60

Width

100

Length

190

IP Rating

IP54

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square, Rounded Design

Mounting

Free Standing

Feature

N/A

Series

3400

Downloads

3400 Series Multipurpose Electronic Equipment Enclosure_D

327.66 KB

3400-54

196.66 KB
