400 Series Lugged Cable Entry Box_D
323.04 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
400-019
82 × 57 × 33 mm
Material: ABS
Category: All Products, General Purpose Plastic
400 Series Enclosure, Small Electronic Enclosure With Cable Entry and Mounting Lugs
£1.41
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

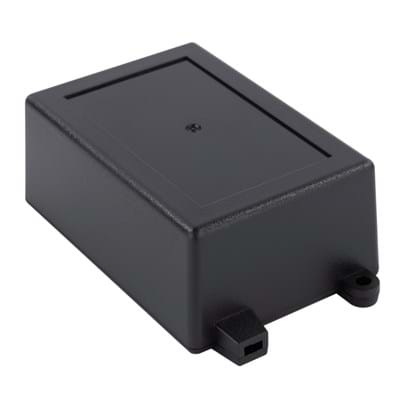

400-019 – 400 Series Enclosure, Small Electronic Enclosure With Cable Entry and Mounting Lugs
400 Series with Lugged Lids and Cable Entry, Black, 82x57x33mm
Moulded in ABS
Press-fit flush lid (screw mounted lid 400-019)
Lugs provide added security once mounted by restricting access
2x moulded cable entries
Label recess in base (400-019 only)
Highly resistant to most chemicals
High rigidity and impact strength
Compliant with water absorption to DIN53495
Maximum protection against shock, chemicals, moisture & temperature
Technical
| Dimensions | 82 × 57 × 33 mm |
|---|---|
| Colour | Black |
| Height | 33 |
| Width | 57 |
| Length | 82 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Cable Inlets, Lugged, Recessed Base |
| Series | 400 |
