500-0930
183 × 180 × 54 mm
Material: Aluminium, Steel
Category: All Products, General Purpose Plastic

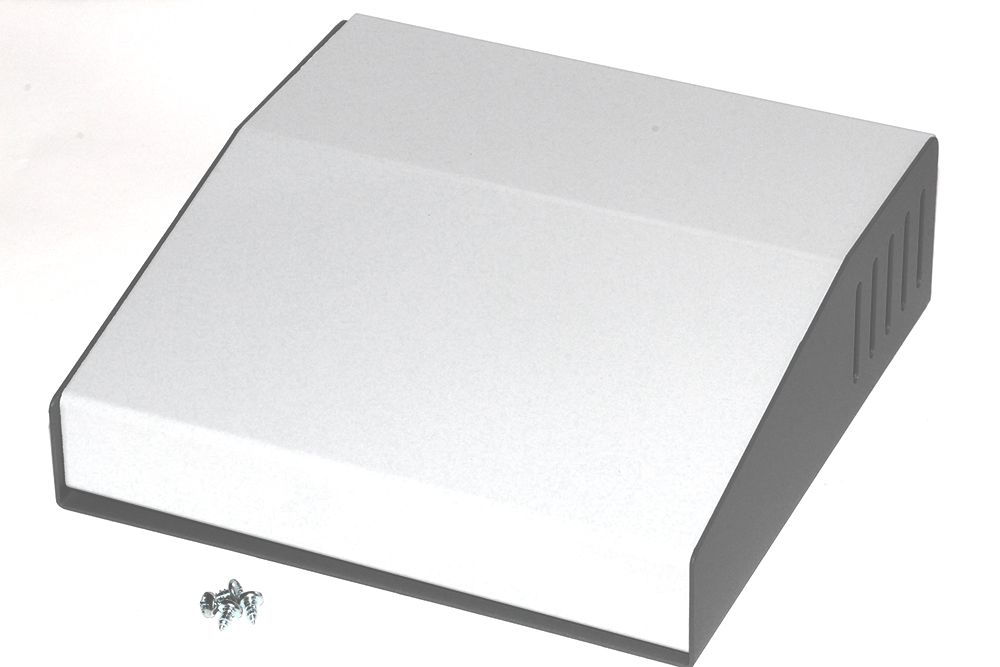

Metal Sloped Console
£19.20
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- 18 ga. steel base for extra strength
- Easy to machine – aluminium top panels are 0.064? thick aluminium.
- Sides include vertical rows of ventilation
- Sold pre-assembled with a two tone grey powder paint finish (base is dark satin grey, slope top is smooth light grey).
- Comes with four self adhesive rubber feet and required hardware.
- Replacement screws SC19482-50 (Pkg. of 50, Philips head – #6 X 1/4? self tapping screws).
Three sizes come with a steel rear surface.
15 degree slope
30 degree slope
Shown unassembled
Technical
| Dimensions | 183 × 180 × 54 mm |
|---|---|
| Colour | Grey |
| Height | 54 |
| Width | 180 |
| Length | 183 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Aluminium, Steel |
| Flammability | N/A |
| Shape | Rectangular/Square, Sloped Design |
| Mounting | Wall Mount |
| Feature | Vented |
| Series | 500 |
