513-0900
200 × 121 × 89 mm
Material: Steel
Category: All Products, General Purpose Plastic

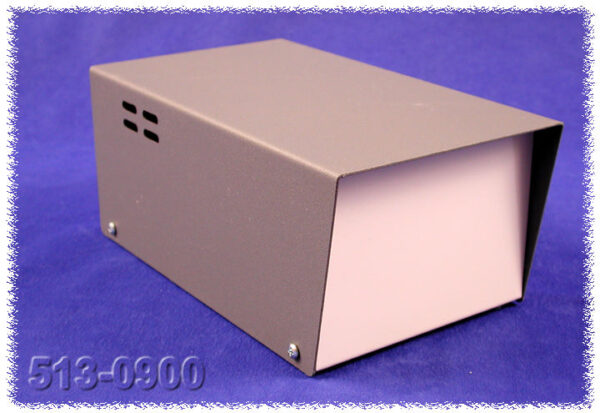

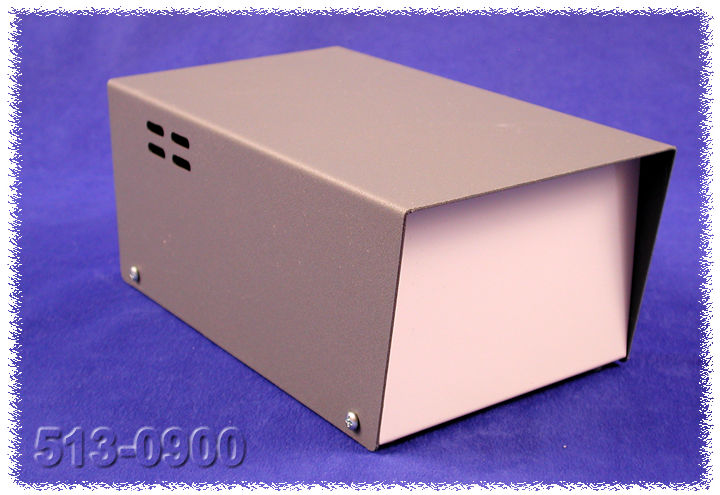

Metal Sloped Console
£17.58
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- 18 ga. steel base and top – for extra strength (front & back panel will not push in from mounted buttons, controls, connectors , etc.).
- Sides include two horizontal rows of ventilation.
- Choice of sloping or vertical sides by reversing case.
- Sold pre-assembled with a two tone grey powder coat finish. Top is dark satin gray. Bottom, front & back is smooth light grey.
- Comes with four self adhesive rubber feet and required hardware.
- Replacement screws
SC19482-50 (Pkg. of 50, Philips head – #6 X 1/4” self tapping screws).
Technical
| Dimensions | 200 × 121 × 89 mm |
|---|---|
| Colour | Grey |
| Height | 89 |
| Width | 121 |
| Length | 200 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Steel |
| Flammability | N/A |
| Shape | Rectangular/Square, Sloped Design |
| Mounting | Wall Mount |
| Feature | Vented |
| Series | 500 |
