7200-250

52 × 50 × 35 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

7200 Series, Grey, 52x50x35mm
£2.96

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

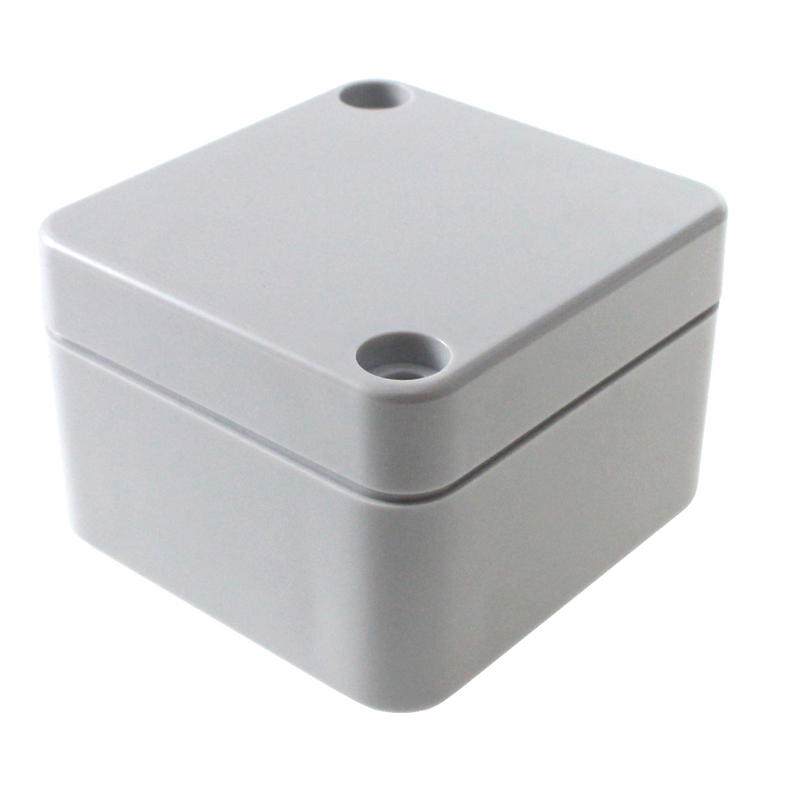

7200-250 – IP65 Polycarbonate Electronic Enclosure – 7200 Series, Grey, 52x50x35mm

Robust industrial polycarbonate enclosure suitable for a wide range of electrical and electronic indoor or outdoor applications. Available in 25 sizes with either a clear or solid lid.

Robust Polycarbonate cases to guard electrical and electronic components in rugged environments
Moulded in high grade Polycarbonate
PCB pillars in base with threaded inserts and for self-tapping screws
Lid mounted by M3 machine screws
Easy to use Wall Mounting holes
Clear lid and solid lid options available
7200 series has been designed to meet the requirements of IP65
Ideal for Industrial electrical applications and smart factory electronics

Technical

Dimensions 52 × 50 × 35 mm
Width

50

Length

52

IP Rating

IP65

Manufacturer

CamdenBoss

Material

Polycarbonate

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Free Standing, Wall Mount

Feature

N/A

Series

7200

Downloads

7200 Series Waterproof Polycarbonate Electronic Enclosure_D

208.07 KB

7200-250

165.36 KB
