7200-256
82 × 80 × 55 mm
Material: Polycarbonate
Category: All Products, Heavy Duty
7200 Series, Grey, 82x80x55mm
£6.84
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

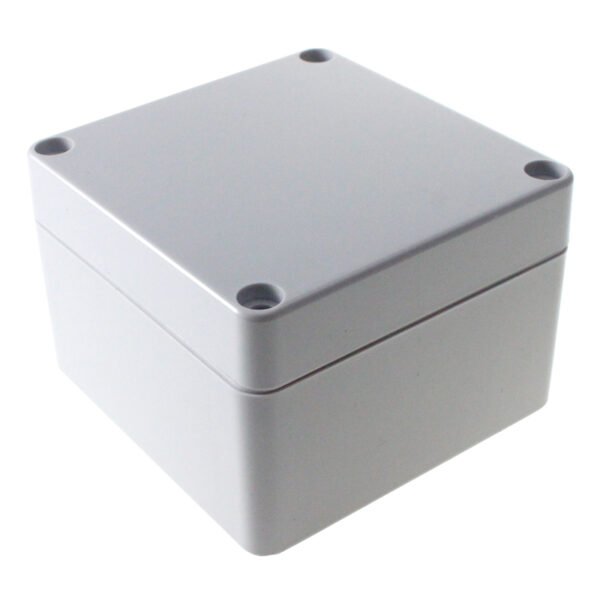

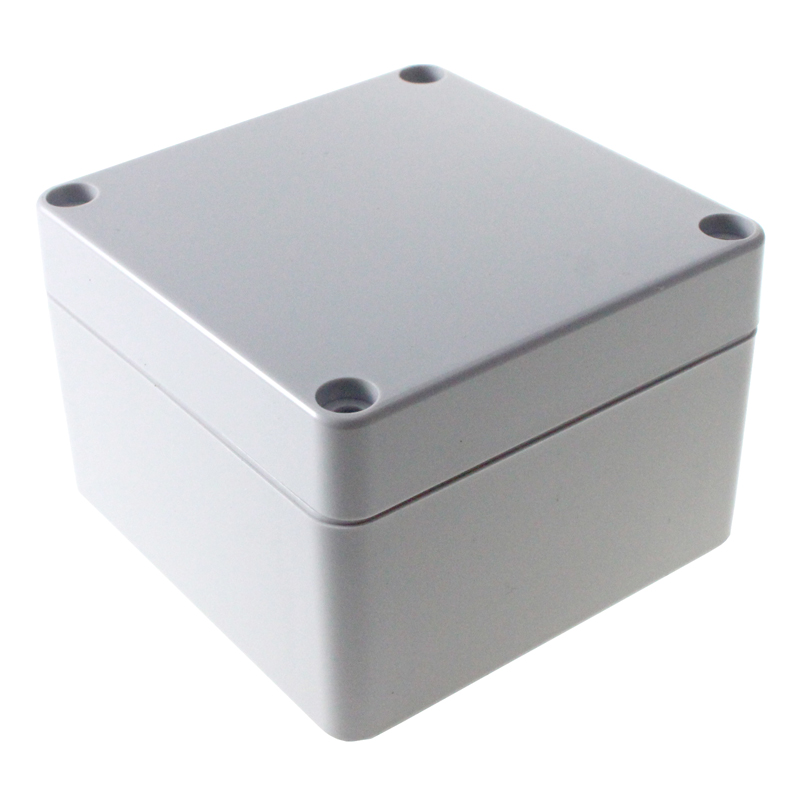

7200-256 – IP65 Polycarbonate Electronic Enclosure – 7200 Series, Grey, 82x80x55mm
Robust industrial polycarbonate enclosure suitable for a wide range of electrical and electronic indoor or outdoor applications. Available in 25 sizes with either a clear or solid lid.
Robust Polycarbonate cases to guard electrical and electronic components in rugged environments
Moulded in high grade Polycarbonate
PCB pillars in base with threaded inserts and for self-tapping screws
Lid mounted by M3 machine screws
Easy to use Wall Mounting holes
Clear lid and solid lid options available
7200 series has been designed to meet the requirements of IP65
Ideal for Industrial electrical applications and smart factory electronics
Technical
| Dimensions | 82 × 80 × 55 mm |
|---|---|
| Width | 80 |
| Length | 82 |
| IP Rating | IP65 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Wall Mount |
| Feature | N/A |
| Series | 7200 |
