7300 Series Waterproof ABS Electronic Enclosure_D
228.62 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
7300-304C
115 × 65 × 40 mm
Material: ABS
Category: All Products, Heavy Duty
7300 Series, Grey, Clear Lid, 115x65x40mm
£5.05
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

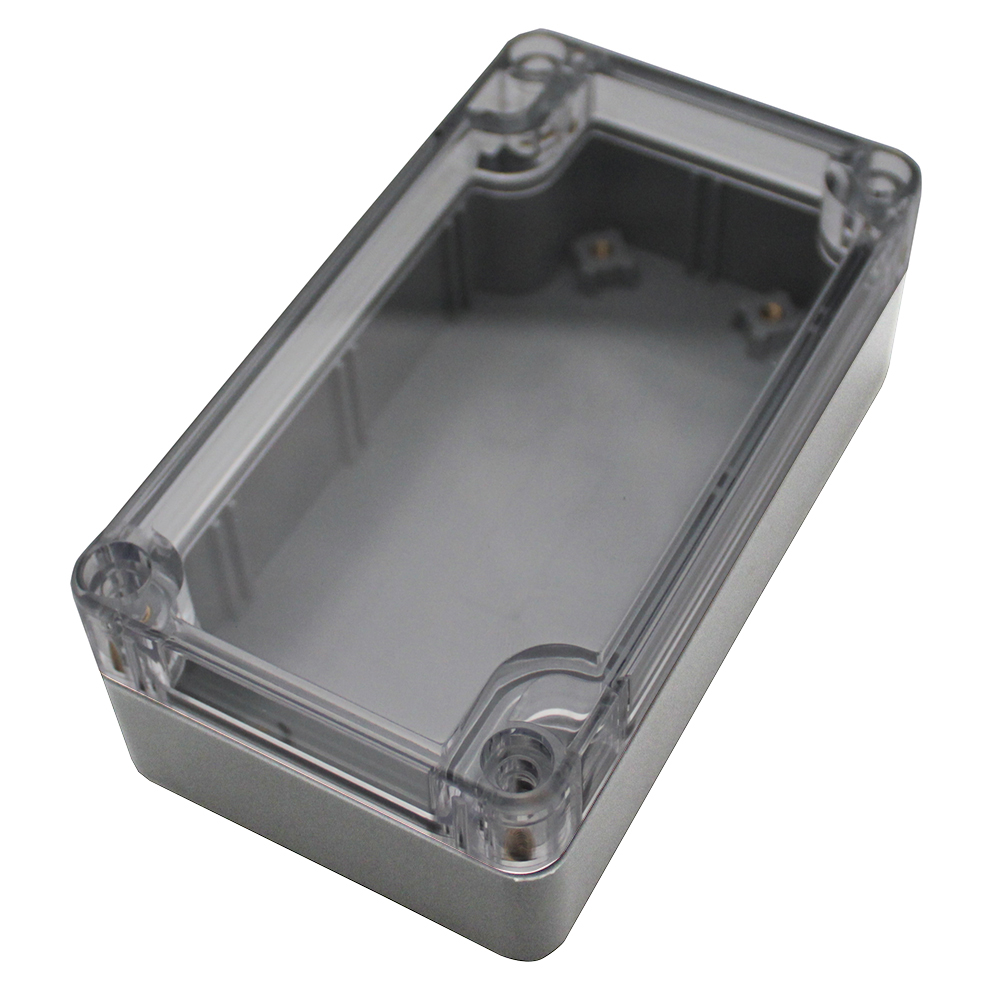

7300-304C – IP65 ABS Electronic Enclosure – 7300 Series, Grey, Clear Lid, 115x65x40mm
Heavy duty industrial ABS enclosure suitable for a wide range of electrical and electronic indoor or outdoor applications. Available in 25 sizes with either a clear or solid lid.
Robust ABS cases to protect electrical and electronic components in rugged environments
Moulded in high quality ABS
PCB pillars in base with threaded inserts and for self-tapping screws
Lid mounted by M4 machine screws
Easy to use Wall Mounting holes
Clear and solid lid option
7300 series has been designed to meet the requirements of IP65
Ideal for Industrial electrical applications and smart factory electronics
Technical
| Dimensions | 115 × 65 × 40 mm |
|---|---|
| Colour | Grey |
| Height | 40 |
| Width | 65 |
| Length | 115 |
| IP Rating | IP65 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Clear Lid |
| Series | 7300 |
