BIM2001/IP-GY
105 × 58 × 40 mm
Material: ABS
Category: All Products, General Purpose Plastic
GY, 2000 Series Flanged IP65 General Purpose ABS Enclosuree, Grey, 105x58x40mm
£2.25
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

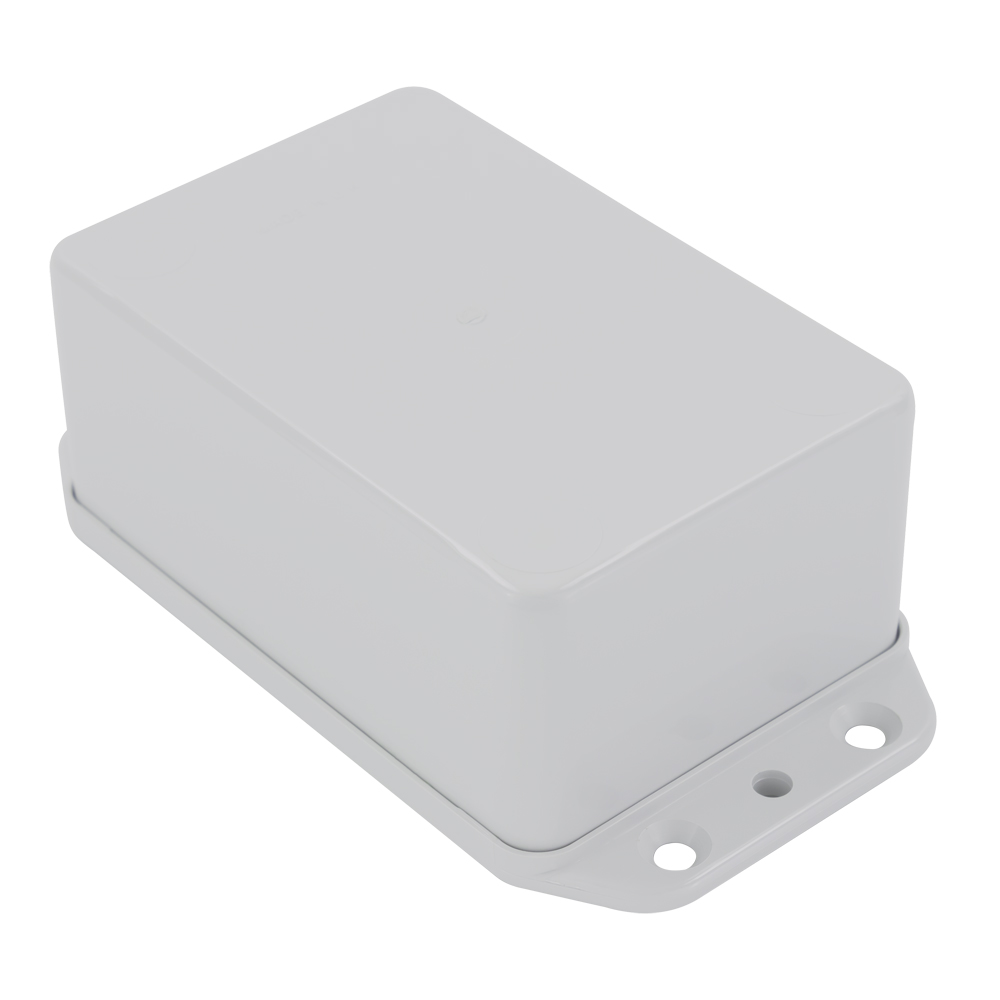

BIM2001/IP-GY, 2000 Series Flanged IP65 General Purpose ABS Enclosuree, Grey, 105x58x40mm
Surface mountable general purpose electronics device enclosure optional IP65 ratings. This UK manufactured enclosure is moulded in UL94-HB ABS.
For applications requiring surface mounting and protection against dust and water ingress.
Provides extra security once mounted by restricting access to the screws in the lid
Flanged lid and base moulded in ABS
High gloss polished finish

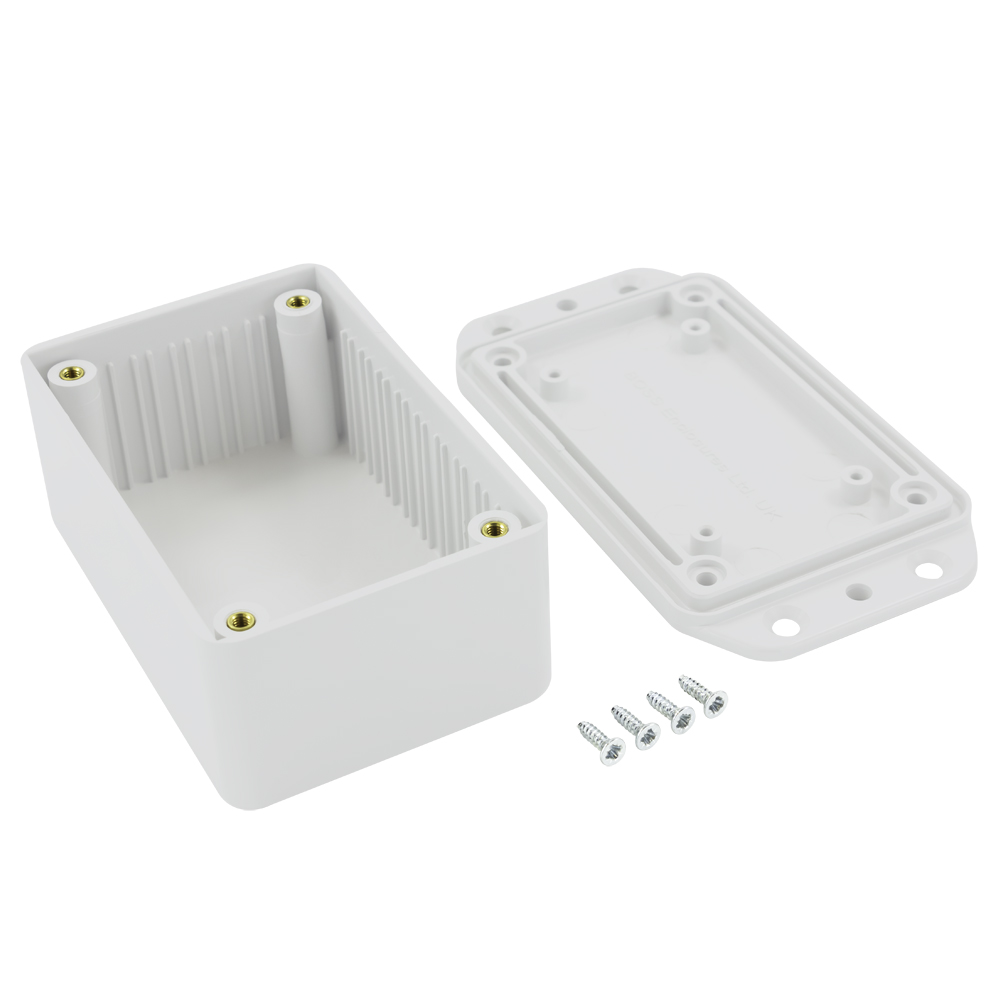

Brass inserts in base for repetitive removal of the lid (except for 2000 or 2008 sizes)
Excellent properties for machining
Integral mounting guides to accept 1.6mm PCBs
Plastic standoffs in lid for PCB mounting
2000 series flanged has been designed to meet the requirements of IP65 with gasket accessory
General purpose enclosures, EMC/RFI, deep profile or lugged lid enclosures available
Technical
| Dimensions | 105 × 58 × 40 mm |
|---|---|
| Colour | Grey |
| Height | 40 |
| Width | 58 |
| Length | 105 |
| IP Rating | IP65 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Flanged |
| Series | 2000 |
