BIM2006/26-BLK/BLK
190 × 110 × 90 mm
Material: ABS
Category: All Products, General Purpose Plastic
BLK/BLK, 2000 Series Deep Profile ABS Enclosure, Black, 190x110x90mm
£6.13
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

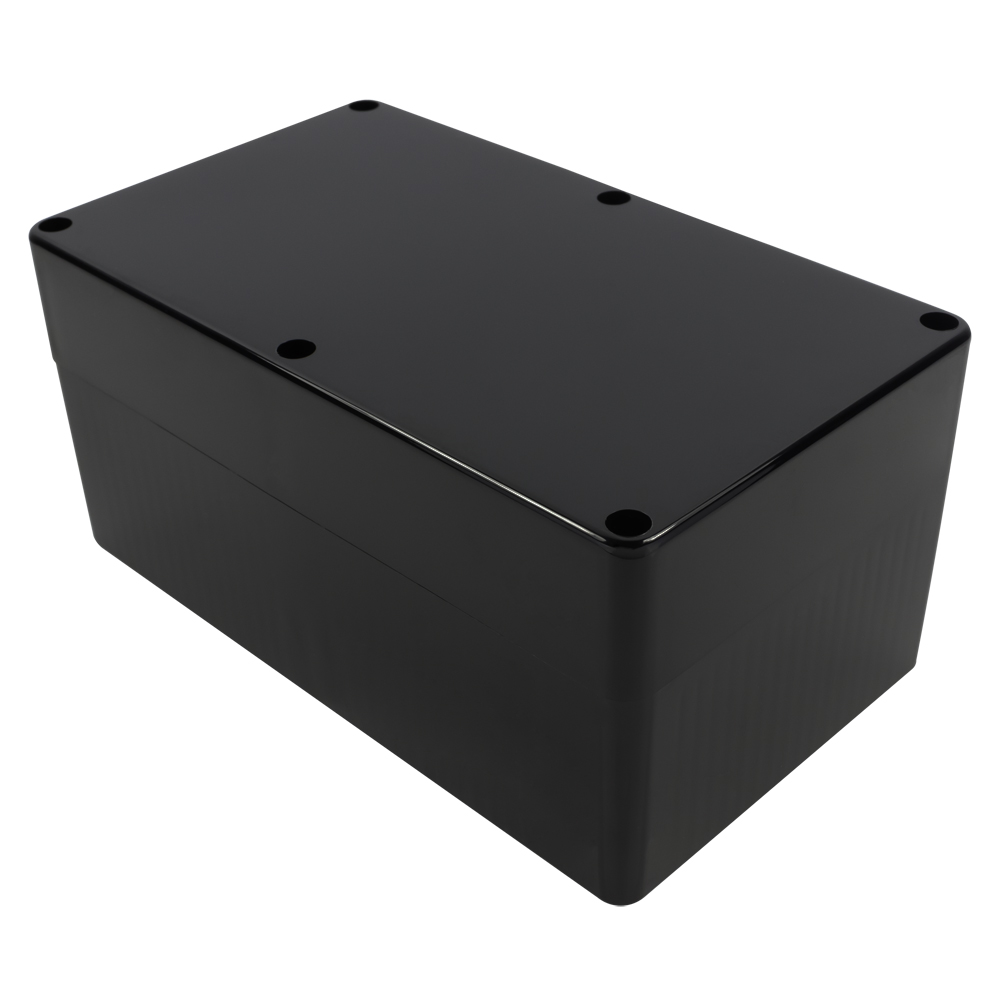

BIM2006/26-BLK/BLK, 2000 Series Deep Profile ABS Enclosure, Black, 190x110x90mm
Multi-purpose electronics enclosure suitable for deep internal requirements for industrial technology. This UK manufactured enclosure is moulded in UL94-HB ABS.
Multi-purpose enclosures for application where extra height is required
The deep profile 2000 series electronic enclosure provides increased internal volume

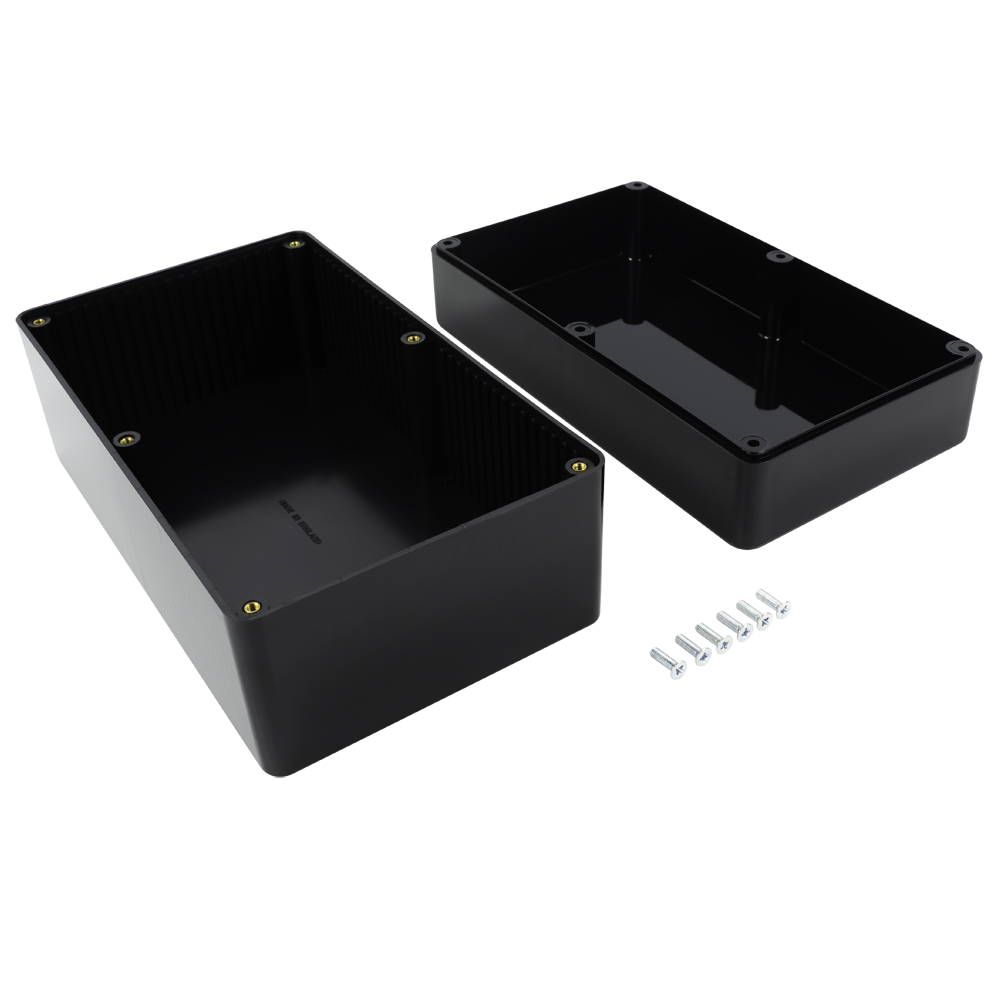

Deep profile Lid and base moulded in ABS
Brass inserts in base for repeated removal of the lid
Excellent properties for machining
Integral mounting guides in base to accept 1.6mm PCBs
Available in other colours on request (subject to MOQ)
2000 series has been designed to meet the requirements of IP54
General purpose enclosures, EMC/RFI, flanged or lugged lid enclosures available
Customise your BIM enclosure using our digital printing service
Technical
| Dimensions | 190 × 110 × 90 mm |
|---|---|
| Colour | Black |
| Height | 90 |
| Width | 110 |
| Length | 190 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 2000 |
