CB1500-10VWH-KIT

100 × 100 × 53 mm

1500 Series Universal Smart Enclosure Kit, White
£7.15

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

CB1500-10VWH-KIT – 1500 Series Universal Smart Enclosure Kit, White

1500 Series Universal Smart Enclosure Kit White, Vented wall 100x100x53.25mm. This UK manufactured enclosure is moulded in UL94-V0 ABS. Ideal for applications such as safety monitoring, door entry control, security sensors, social distance monitoring, air detection etc.

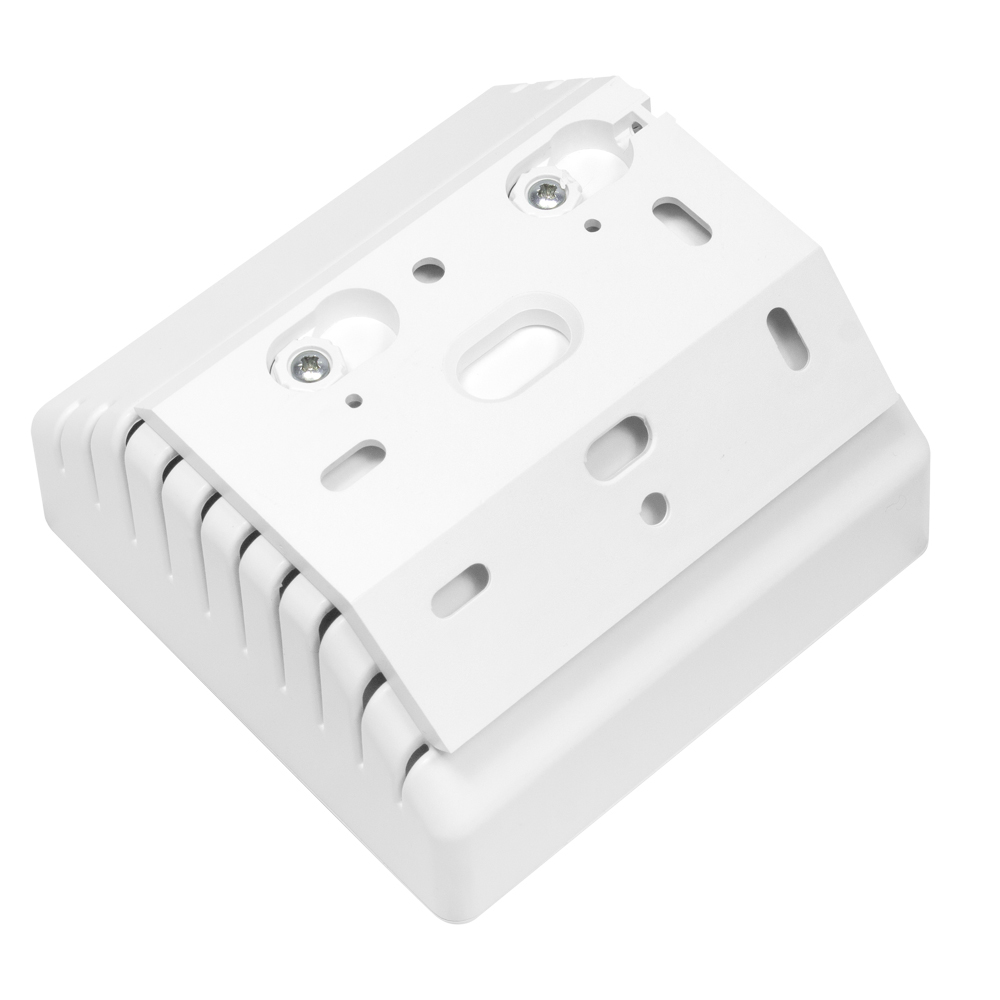

The 1500 Series Universal Smart Enclosure provides engineers and electronic device designers with a modern aesthetic enclosure with practicality and usability at its centre. Many features and benefits have been integrated into the enclosure, providing the user with many application potentials such as access control systems, social distance monitoring, air detection monitoring, Wall Mount lighting and heating controls, door entry, biometrics controls, security lighting, PIR’s and desktop devices. The innovative enclosure’s 45 degree angled base allows it to be mounted directly into corners without issue, made possible by the well-developed and thought out mounting bracket that is available when purchased with the enclosure as a kit. Each electronic housing provides multiple level PCB mounting bosses with one level designed purposely to fit development boards such as the Raspberry Pi. This excellent use of the space shows just how developed the enclosure is and the time that has gone into ensuring it offers a new approach to product design whist remaining flexible and practical. Available in three colours: white, black and grey, the UL94-V0 enclosure is also available with vents or as a solid body option. The recessed lid can be fitted with just one screw allowing for a quick and easy assembly.

Technical

Dimensions 100 × 100 × 53 mm
Colour

White

Height

53

Width

100

Length

100

IP Rating

IP40

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-V0

Shape

Triangular

Mounting

Corner Mount

Feature

Recessed Lid

Series

1500

Downloads

1500 Series Datasheet

1.02 MB

CB1500-10XXX

218.87 KB
