Arduino Enclosures_series_D
368.48 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CBARD-AA-BLK
95 × 57 × 44 mm
Material: Polystyrene
Category: All Products, Development Board
Arduino Enclosure, IoT Electronics Enclosure, Development Board Case
Price on Application
Add to QuoteAsk a QuestionReport an ErrorEnclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

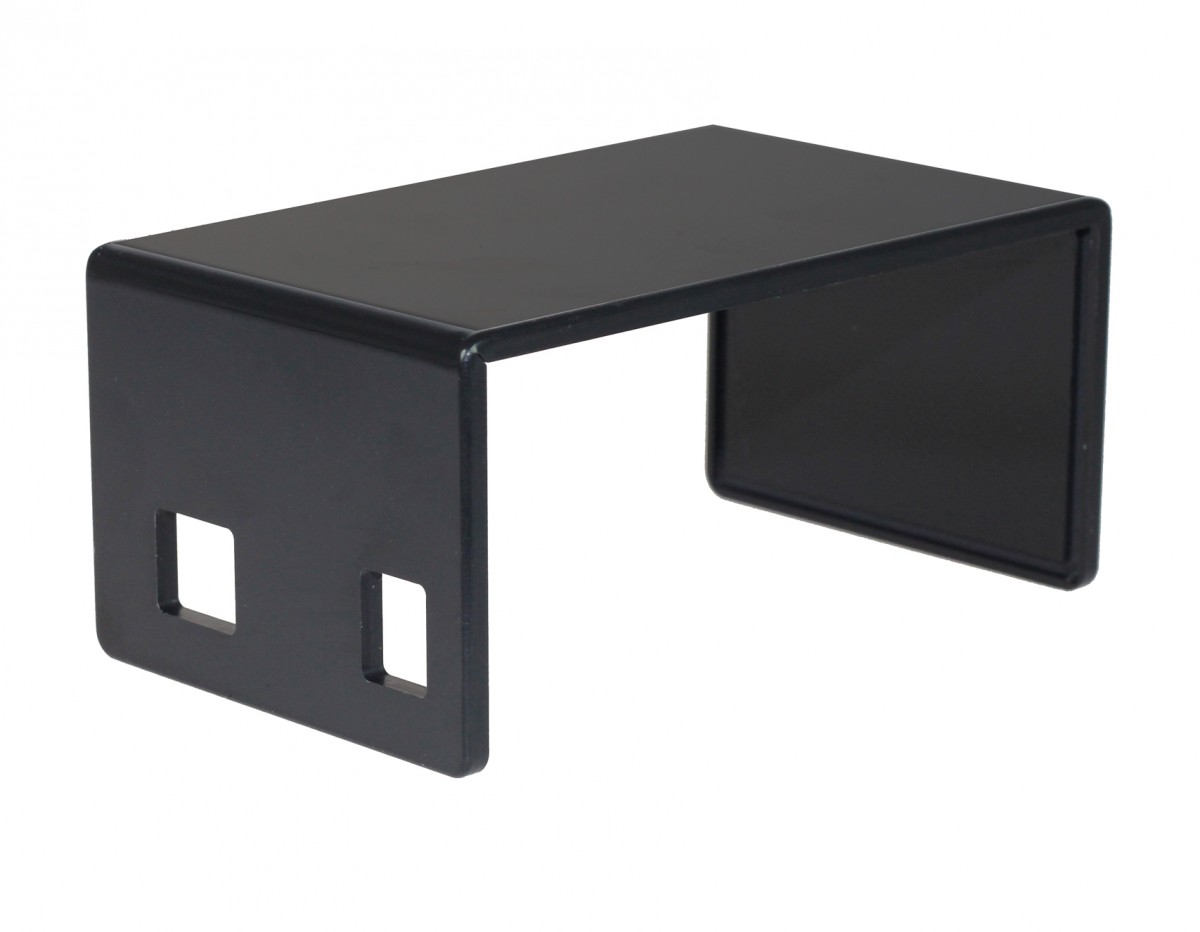

CBARD-AA-BLK – Arduino Enclosure, IoT Electronics Enclosure, Development Board Case
Arduino Enclosure Top, Black
Designed to house the Arduino Uno and Ethernet shield, via clip-in grooves
Knockout for Ethernet port
All cut-outs are pre-cut into the case – NO MODS REQUIRED
Supplied with rubber feet
Gloss finish
Thickness 3mm: HB Rated
Coloured Materials: High Impact Polystyrene (HIPS)
Carbon Fibre finish: Acrylic Capped ABS
Technical
| Dimensions | 95 × 57 × 44 mm |
|---|---|
| Colour | Black |
| Height | 44 |
| Width | 57 |
| Length | 95 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Polystyrene |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | Arduino |
Downloads
CBARD-AA-BLK
186.51 KB
