Easy Assembly Series Datasheet
651.06 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CBEAC-03-GY
130 × 80 × 45 mm
Material: ABS
Category: All Products, General Purpose Plastic
Easy Assembly Electronics Enclosure Grey
£2.83
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

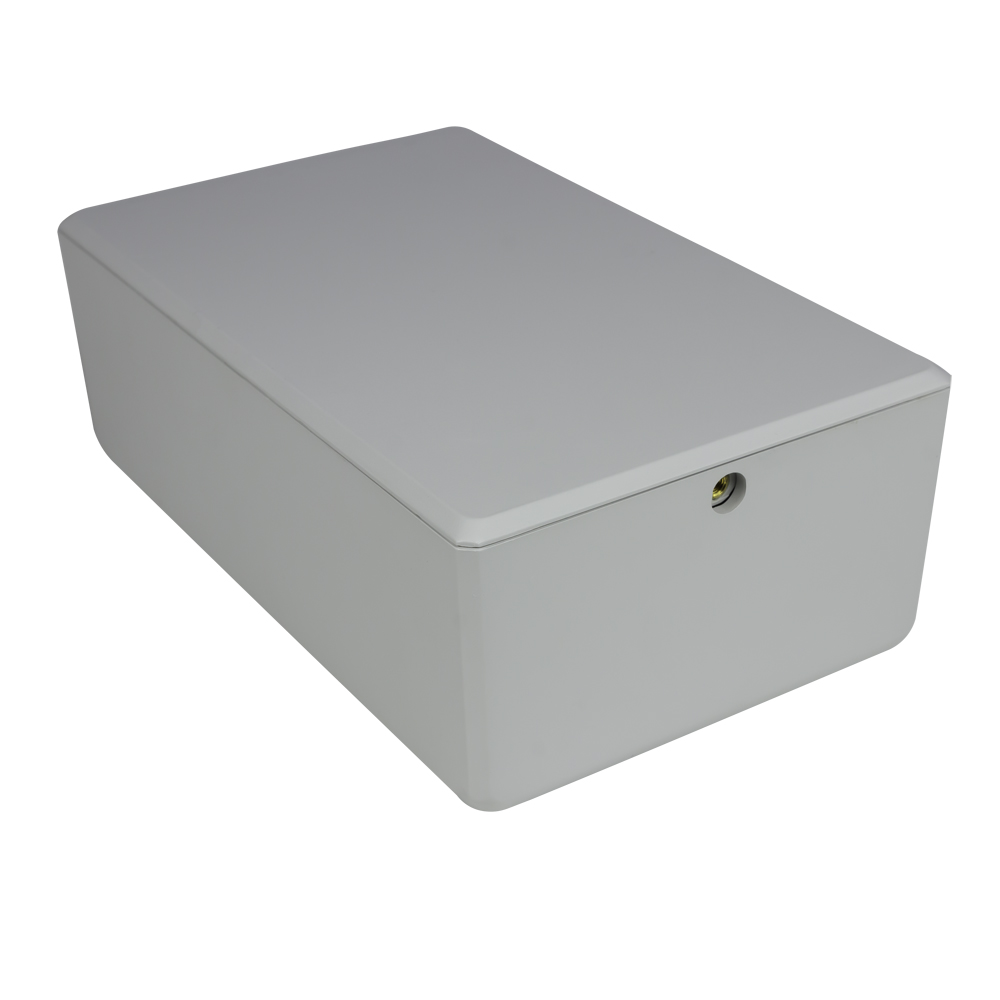

CBEAC-03-GY – Easy Assembly Electronics Enclosure Grey

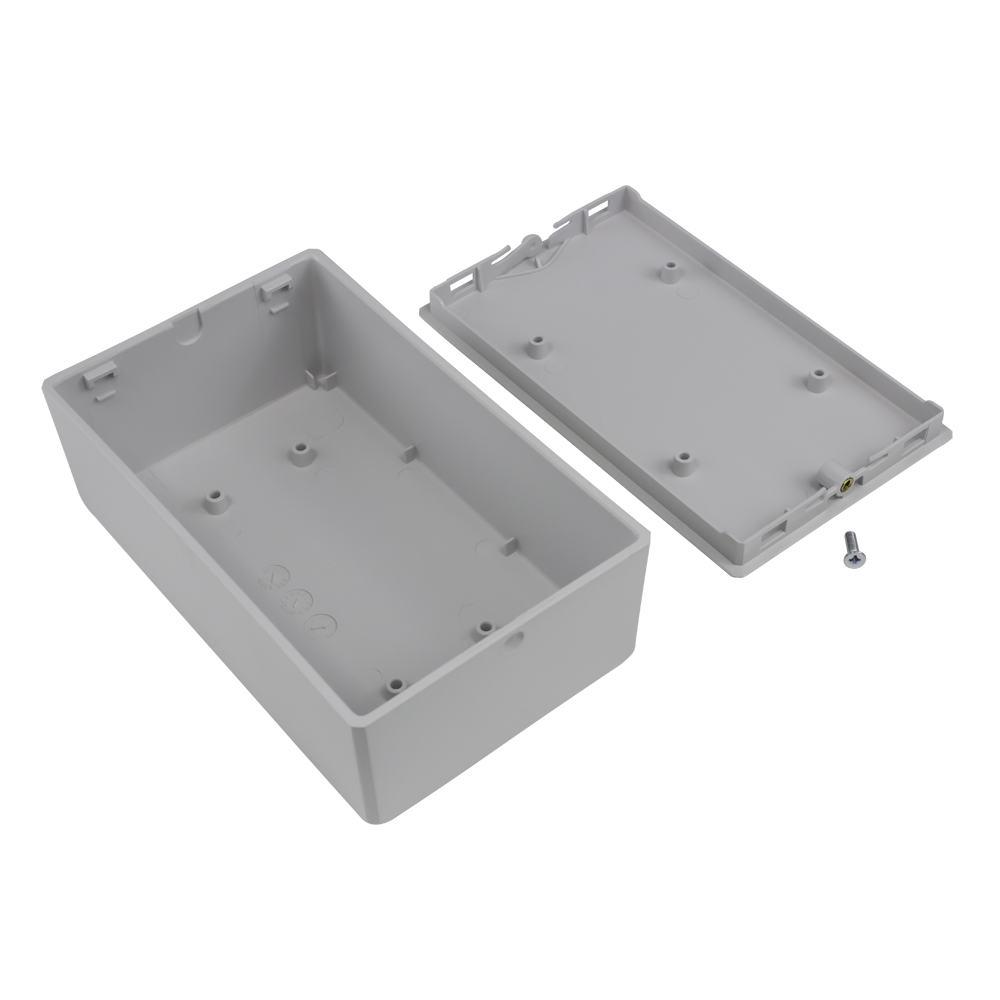

Moulded in grey UL94-V0 ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure is a general purpose enclosure providing fast assembly using the dual action lid and drop fit PCB position. Edge to edge PCB maximises the internal space.

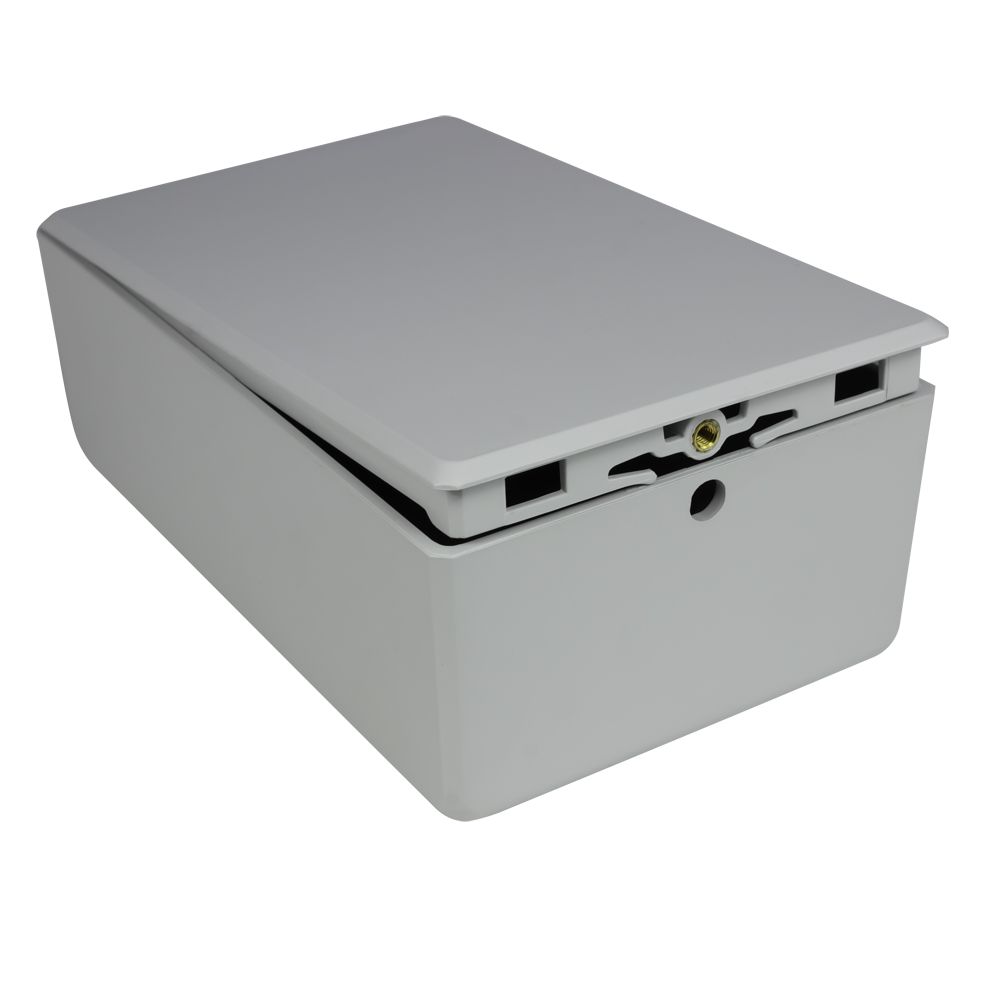

The Easy Assembly Electronics Enclosure, manufactured and designed in the UK, is changing the way we use enclosures. Innovative design features put this universal enclosure at the forefront of the industry as a premium quality, modern yet highly functional product. A unique, dual action lid and clip-in-points for your PCB, assists with reduced assembly time on the production line. The smooth finished housing is available in three colours and four sizes, with 2.5mm thick walls rated to UL94-V0, giving it a premium quality finish. Due to the edge-to-edge capability and fine textured walls, every side can be customised or modified. This enclosure really does give you value for money without compromise on quality or features.?
Technical
| Dimensions | 130 × 80 × 45 mm |
|---|---|
| Colour | Grey |
| Height | 45 |
| Width | 80 |
| Length | 130 |
| IP Rating | IP40 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | DIN Rail, Free Standing, Wall Mount |
| Feature | Easy Assembly |
| Series | CBEAC |
